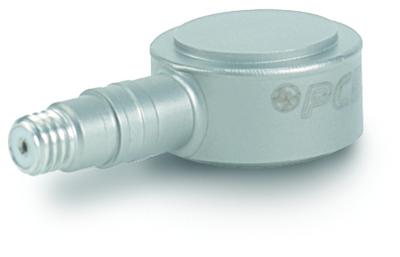

Model : 200B05 | Force Sensor, ICP®

Click for lead times
impact icp® quartz force sensor, 5k lb comp., 1 mv/lb

Impact ICP® quartz force sensor, 5k lb comp., 1 mV/lb

***Replaced by 208C05***

  • Measurement Range: 5000 lb ( 22.24 kN)
  • Sensitivity: (±15%)1 mV/lb ( 224.82 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 75000 Hz
  • Temperature Range: -65 to +250 °F ( -54 to +121 °C)
  • Mounting Thread: 10-32 Female

RELATED PRODUCTS



208C05
208C05

Platinum Stock Products; Multi-purpose, ICP® force sensor, 5k lb comp., 500 lb tension, 1 mV/lb



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) 1 mV/lb 224.82 mV/kN
Measurement Range (Compression) 5000 lb 22.24 kN
Maximum Static Force (Compression) 8000 lb 35.59 kN
Broadband Resolution (1) 0.10 lb-rms 0.4448 N-rms [ 2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [ 1]
Upper Frequency Limit 75000 Hz 75000 Hz [ 4]
Non-Linearity ≤1 % FS ≤1 % FS [ 3]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Stiffness 11 lb/µin 1.9 kN/µm [ 2]
Size - Diameter 0.650 in 16.51 mm
Size - Height 0.360 in 9.14 mm
Size - Sensing Surface 0.500 in 12.7 mm
Weight 0.5 oz 14 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Calculated from discharge time constant.
[ 4] Estimated using rigid body dynamics calculations.
[ 2] Typical.
[ 5] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A81 Thread lock adhesive (for Series 200) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
084A83 Rubber impact pad 1
M081A62 Mounting stud, 10-32 to M6x1x 8.3 mm long, BeCu 1


Optional Versions


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
