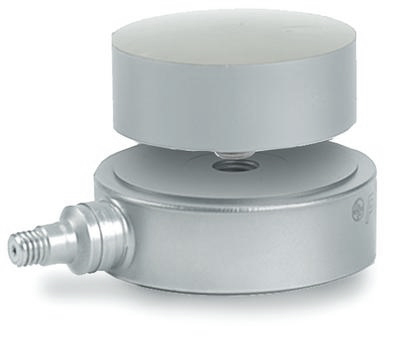

icp® quartz force sensor, impact, 20k lb comp., 0.25 mv/lb, 10-32 ele. conn., stainless steel construction, hermetically sealed.

ICP® Force Sensor

Model 200C20

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
3 Call for Lead Time
  • CE
  • IP

ICP® quartz force sensor, impact, 20k lb comp., 0.25 mV/lb, 10-32 ele. conn., stainless steel construction, hermetically sealed.

  • Measurement Range: 20000 lb (88.96 kN)
  • Sensitivity: (±15%)0.25 mV/lb (56.2 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 40000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 1/4-28 Female (Not Applicable)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] Minimum 25 VDC required for maximum output voltage.
[2] Typical.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 0.25 mV/lb 56.2 mV/kN
Measurement Range (Compression) 20000 lb 88.96 kN
Maximum Static Force (Compression) 30000 lb 133.44 kN
Broadband Resolution (1) 0.30 lb-rms 1.3 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 40000 Hz 40000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.08 %/°F ≤0.144 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC [5]
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.039 lb/√Hz 0.17 N/√Hz [2]
Spectral Noise (10 Hz) 0.012 lb/√Hz 0.054 N√Hz [2]
Spectral Noise (100 Hz) 0.0034 lb/√Hz 0.015 N/√Hz [2]
Spectral Noise (1000 Hz) 0.00088 lb/√Hz 0.0039 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 63 lb/µin 11 kN/µm [2]
Size - Diameter 1.5 in 38.1 mm
Size - Height 0.5 in 12.7 mm
Weight 3.1 oz 88 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 1/4-28 Female Not Applicable

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A81 Thread lock adhesive (for Series 200) 1
081A06 Mounting stud, 1/4-28 to 1/4-28 thds x 0.365", no shoulder 1
081B20 Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder 1
084B23 Impact cap, convex (for Model 200C20) 1
M081A61 Mounting stud, 1/4-28 to M6x1 x 8.6 mm long, BeCu w/shoulder 1

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
