load cell, side force, 100 lb fs, integral cable with pigtails, stainless steel construction, gse/rs standard wiring code

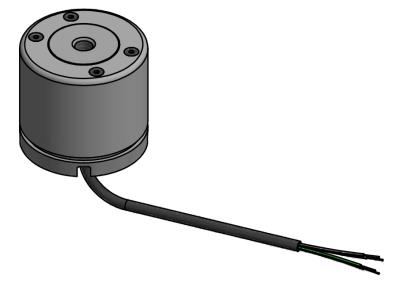

LOAD CELL, SIDE FORCE, 100LB FS

Model 1903-02A

Add to Quote
  • IP

Load Cell, Side Force, 100 Lb FS, Integral Cable with pigtails, Stainless Steel Construction, GSE/RS standard wiring code

  • Measurement Range: 100 lbf (445 N)
  • Size - Diameter: 1.50 in (38.1 mm)
  • Size - Height: 1.25 in (31.75 mm)

Specification Notes

[1] FS - Full Scale.
[2] RO - Rated Output.
[3] Over compensated operating temperature range.
[4] Nominal.
[5] Calibrated at 10 VDC, usable 3 to 20 VDC or VAC RMS.
[6] See Outline Drawing 58830 for Complete Dimensions.

English: SI:
Performance
Measurement Range 100 lbf 445 N [1]
Sensitivity (10 %) 1.3 mV/V 1.3 mV/V [2]
Non-Linearity ≤0.10 % FS ≤0.10 % FS
Hysteresis ≤0.10 % FS ≤0.10 % FS
Non-Repeatability ≤0.02 %RO ≤0.02 %RO
Environmental
Overload Limit 150 lbf 667 N
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [3]
Temperature Effect on Zero Balance (Maximum) ±0.001 %FS/°F ±0.0018 %FS/°C [3]
Electrical
Bridge Resistance 2000 Ohm 2000 Ohm [4]
Excitation Voltage (Recommended) 10 VDC 10 VDC [5]
Insulation Resistance >5000000000 Ohm >5000000000 Ohm
Zero Balance ≤1 % FS ≤1 % FS
Output Polarity (Tension ) Negative Negative
Physical
Size - Height 1.25 in 31.75 mm [6]
Size - Diameter 1.50 in 38.1 mm [6]
Weight 0.30 lb 0.13 kg
Mounting Thread #4-40 Female No Metric Equivalent
Housing Material Aluminum Aluminum
Sensing Element Strain Gage Strain Gage
Deflection at Full Scale Capacity 0.004 in 0.12 mm
Electrical Connector pigtail ends pigtail ends
Electrical Connection Position Bottom Bottom

* All specifications are at room temperature unless otherwise specified.
