Model: 1408-02ADB

Add to Cart for Quote

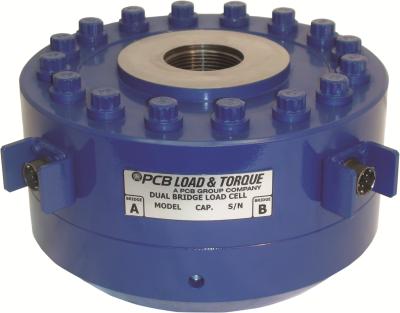

Dual bridge load cell, fatigue rated low profile, 50k lb FS, 1.75-12 (F) thd, PT conn.

Specifically designed for airframe structural, lifetime and fatigue testing applications on wings, fuselage, landing gear, iron bird and other airframe components. •Series 1400 includes a dual output feature that offers sensor redundancy and the ability to provide control feedback from one output while the other is used for data acquisition •A2LA accredited calibration to ISO 17025 in both tension and compression directions •Fatigue rated load cells are guaranteed for 100 million fully-reversed cycles •Thermally compensated •Moment compensated •A single shunt calibration resistor is provided with each load cell for ease of calibration at the test site

  • Measurement Range: 50 klb (222 kN)
  • Size - Diameter: 8.00 in (203.20 mm)
  • Size - Height: 4.50 in (114.30 mm)
  • Electrical Connector: PT02E-10-6P (2)

Add this product to my product comparison
Compare selected models ()

Measurement Range (100 x 10^6 cycles)50 klb222 kN[2][4]
Sensitivity (±10 %)2.0 mV/V2.0 mV/V[1][3]
Non-Linearity≤0.05 % FS≤0.05 % FS
Hysteresis≤0.05 % FS≤0.05 % FS
Non-Repeatability≤0.02 %RO≤0.02 %RO
Creep (in 20 minutes)0.025 %0.025 %
Static Error Band≤0.05 % FS≤0.05 % FS[2]
Eccentric Load Sensitivity0.1 %/in0.1 %/25.4mm
Resonant Frequency18 kHz18 kHz
Side Load Sensitivity0.1 %/in0.1 %/25.4mm
Overload Limit150 klb667 kN
Load Limit (Side Force, FX or FY)50 klb222 kN[5]
Load Limit (Bending Moment, MX or MY)50k in-lb5649 Nm[5]
Load Limit (Axial Torque, MZ)50k in-lb5649 Nm[5]
Temperature Range (Operating)-65 to +200 °F-54 to +93 °C
Temperature Range (Compensated)+15 to +115 °F-9 to +46 °C
Temperature Effect on Output (Maximum)±0.0008 %Reading/°F±0.0018 %Reading/°C[6]
Temperature Effect on Zero Balance (Maximum)±0.0008 %FS/°F±0.0018 %FS/°C[6]
Bridge Resistance350 Ohm350 Ohm[1]
Excitation Voltage (Recommended)10 VDC10 VDC[7]
Insulation Resistance>5k GOhm>5k GOhm
Zero Balance≤1 %RO≤1 %RO
Output Polarity+Tension +Tension
Size - Height4.50 in114.30 mm[8]
Size - Diameter8.00 in203.20 mm[8]
Weight54 lb25.5 kg
Mounting Thread1 3/4 - 12 UNF-3BNo Metric Equivalent
Sensing ElementStrain GageStrain Gage
Mounting Torque2600 in-lb294 Nm
Deflection at Full Scale Capacity0.001 in0.025 mm
Electrical ConnectorPT02E-10-6P (2)PT02E-10-6P (2)

All specifications are at room temperature unless otherwise specified.

Product Notes
[1] Nominal.
[2] FS - Full Scale.
[3] RO - Rated Output.
[4] Calibrated in tension and compression.
[5] Singularly applied, i.e. no other extraneous loads.
[6] Over compensated operating temperature range.
[7] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[8] See Outline Drawing 49042 for Complete Dimensions
