dual bridge load cell, fatigue rated low profile, 25 k lbs fs, 1 1/4 - 12 (f) thd, pt conn.

DUAL BRIDGE LOAD CELL, 25k lbs FS

Model 1404-03ADB

Add to Quote
  • IP

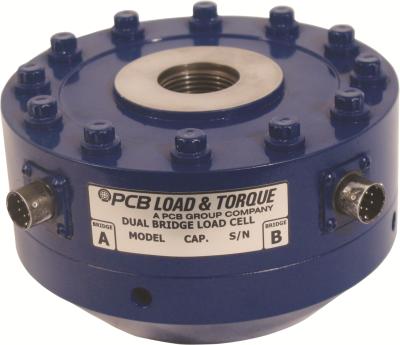

Dual bridge load cell, fatigue rated low profile, 25 k lbs FS, 1 1/4 - 12 (F) thd, PT conn.

Specifically designed for airframe structural, lifetime and fatigue testing applications on wings, fuselage, landing gear, iron bird and other airframe components. •Series 1400 includes a dual output feature that offers sensor redundancy and the ability to provide control feedback from one output while the other is used for data acquisition •A2LA accredited calibration to ISO 17025 in both tension and compression directions •Fatigue rated load cells are guaranteed for 100 million fully-reversed cycles •Thermally compensated •Moment compensated •A single shunt calibration resistor is provided with each load cell for ease of calibration at the test site


Cable <20ft: 8311-17-xxA and 8311-01-xxA&

  • Measurement Range: 25 klb (111 kN)
  • Size - Diameter: 6.06 in (153.90 mm)
  • Size - Height: 3.50 in (88.90 mm)
  • Electrical Connector: PT02E-10-6P (2)

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] RO - Rated Output.
[4] Calibrated in tension and compression.
[5] Singularly applied, i.e. no other extraneous loads.
[6] Over compensated operating temperature range.
[1] Nominal.
[7] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[8] See Outline Drawing 49932 for Complete Dimensions

English: SI:
Performance
Measurement Range (100 x 10^6 cycles) 25 klb 111 kN [2] [4]
Sensitivity (±10 %) 2.0 mV/V 2.0 mV/V [1] [3]
Non-Linearity ≤0.05 % FS ≤0.05 % FS
Hysteresis ≤0.05 % FS ≤0.05 % FS
Non-Repeatability ≤0.02 %RO ≤0.02 %RO
Creep (in 20 minutes) 0.025 % 0.025 %
Static Error Band ≤0.05 % FS ≤0.05 % FS [2]
Eccentric Load Sensitivity 0.1 %/in 0.1 %/25.4mm
Resonant Frequency 15 kHz 15 kHz
Side Load Sensitivity 0.1 %/in 0.1 %/25.4mm
Environmental
Overload Limit 75 klb 334 kN
Load Limit (Side Force, FX or FY) 25 klb 111 kN [5]
Load Limit (Bending Moment, MX or MY) 25k in-lb 2825 Nm [5]
Load Limit (Axial Torque, MZ) 25k in-lb 2825 Nm [5]
Temperature Range (Operating) -65 to +200 °F -54 to +93 °C
Temperature Range (Compensated) +15 to +115 °F -9 to +46 °C
Temperature Effect on Output (Maximum) ±0.0008 %Reading/°F ±0.0018 %Reading/°C [6]
Temperature Effect on Zero Balance (Maximum) ±0.0008 %FS/°F ±0.0018 %FS/°C [6]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Voltage (Recommended) 10 VDC 10 VDC [7]
Insulation Resistance >5k GOhm >5k GOhm
Zero Balance ≤1 %RO ≤1 %RO
Output Polarity +Tension +Tension
Physical
Size - Height 3.50 in 88.90 mm [8]
Size - Diameter 6.06 in 153.90 mm [8]
Weight 21 lb 9.53 kg
Mounting Thread 1 1/4 - 12 UNF-3B No Metric Equivalent
Sensing Element Strain Gage Strain Gage
Mounting Torque 1400 in-lb 158 Nm
Deflection at Full Scale Capacity 0.001 in 0.03 mm
Electrical Connector PT02E-10-6P (2) PT02E-10-6P (2)

* All specifications are at room temperature unless otherwise specified.

Accessories
Optional
084A56 Load cell thread pre-tensioner 1 1/4-12 1
181-012A Mating conn., 6-socket (F) w/strain relief for sensors with PT conn. PT06A-10-6S (SR) 1
8311-01-10A 4-conductor, PT06A-10-6S to pigtails cable, 10-ft, for Reaction Torque and Load Cells with PT connector (& 8162 Series), <20 ft 1
Supplied
084A90 Connector Protector, 1200 & 1400 Series 2
