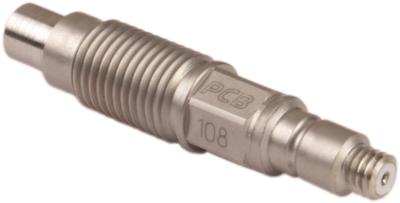

Model : 108A02 | Pressure Sensor, ICP®

Call for lead time
hydraulic pump icp® pressure sensor, 10k psi, 0.5 mv/psi (long life integral diaphragm)
Add to Cart for Quote

Hydraulic pump ICP® pressure sensor, 10k psi, 0.5 mV/psi (long life integral diaphragm)

  • Measurement Range: 10 kpsi ( 68950 kPa)
  • Sensitivity: (±15%)0.5 mV/psi ( 0.073 mV/kPa)
  • Low Frequency Response: (-5%)0.01 Hz
  • Resonant Frequency: >=250 kHz ( >=250 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.42 oz ( 12 gm)

RELATED PRODUCTS



002C10
002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add to Cart
002C20
002C20

General purpose coaxial cable, white FEP jacket, 20-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add to Cart
410C01
410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Measurement Range (for ±5V output) 10 kpsi 68950 kPa
Useful Overrange (for ± 10V output) 20000 psi 137900 kPa [ 2]
Sensitivity (±15 %) 0.5 mV/psi 0.073 mV/kPa
Maximum Pressure (static) 50 kpsi 344750 kPa
Resolution 200 mpsi 1.4 kPa
Resonant Frequency ≥250 kHz ≥250 kHz
Rise Time (Reflected) ≤2 µ sec ≤2 µ sec
Low Frequency Response (-5 %) 0.01 Hz 0.01 Hz
Non-Linearity ≤2 % FS ≤2 % FS [ 1]
Environmental
Acceleration Sensitivity ≤0.05 psi/g ≤0.035 kPa/(m/s²)
Temperature Range (Operating) -100 to +275 °F -73 to +135 °C
Temperature Coefficient of Sensitivity ≤0.10 %/°F ≤0.18 %/°C
Maximum Vibration 2000 g pk 19614 m/s² pk
Maximum Shock 20000 g pk 196140 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥50 sec ≥50 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Physical
Sensing Geometry Compression Compression
Sensing Element Quartz Quartz
Housing Material C-300 C-300
Diaphragm C-300 C-300
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.42 oz 12 gm
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] For +10 volt output, minimum 24 VDC supply voltage required. Negative 10 volt output may be limited by output bias.
[ 3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
065A06 Seal ring, 0.318" OD x 0.250" ID x 0.010" thick, 316L SS (for Series 108, 109, 118 and 119) 3


Optional Versions


( M ) Metric Mount
