Model : 106B50

Call for lead time
Add to Cart for Quote

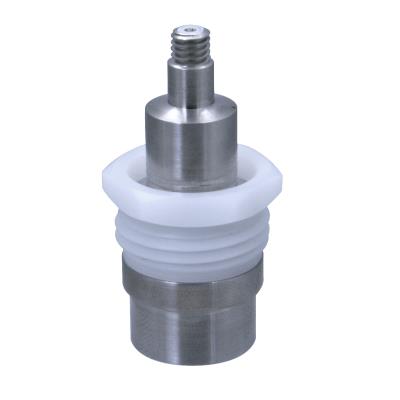

ICP® Acoustic Pressure Sensor, 500 mV/psi, resolution 0.00007 psi (+86 dB), accel. comp.

  • Measurement Range: 5 psi (34.45 kPa)
  • Sensitivity: (±15%)500 mV/psi (72.5 mV/kPa)
  • Low Frequency Response: (-5%)0.5 Hz
  • Resonant Frequency: >=40 kHz (>=40 kHz)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 1.13 oz (32 gm)

RELATED PRODUCTS



061A65

Mounting adaptor, Acetal (for Model 106B50)



Add to Cart for Quote
Add To Quote
062A07

Pipe thread adaptor, 1/2-14 NPT (for Model 106B50)



Add to Cart for Quote
Add To Quote
English: SI:
Performance
Measurement Range (for ±2.5V output) 5 psi 34.45 kPa
Sensitivity (±15 %) 500 mV/psi 72.5 mV/kPa
Maximum Pressure (step) 100 psi 690 kPa
Maximum Pressure (static) 500 psi 3448 kPa
Resolution 0.00007 psi 0.00048 kPa
Resonant Frequency ≥40 kHz ≥40 kHz
Rise Time ≤12 µ sec ≤12 µ sec
Low Frequency Response (-5 %) 0.5 Hz 0.5 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Acceleration Sensitivity ≤0.002 psi/g ≤0.0014 kPa/(m/s²)
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 500 g pk 4903 m/s² pk
Maximum Shock 1000 g pk 9807 m/s² pk
Electrical
Output Polarity (Positive Pressure) Positive Positive
Discharge Time Constant (at room temp) ≥1 sec ≥1 sec
Excitation Voltage 11 to 30 VDC 11 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 3 to 8 VDC 3 to 8 VDC
Physical
Sensing Element Quartz Quartz
Housing Material 17-4 Stainless Steel 17-4 Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 1.13 oz 32 gm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
060A11 Acetal clamp nut, 3/4-16-2A thd, 3/4" hex (for Model 106B50) 1
060A13 Metric Acetal clamp nut, M20 x 1.5-6G thd, 20 mm hex (for Model M106B50) 1
065A36 Seal, 0.687" OD x 0.625" ID x 0.060" thk, Acetal (for Model 106B5X) 3


Optional Versions


( E ) Emralon coating
English SI
Electrical Isolation 100000000 Ohm
Coating Emralon


( W ) Water Resistant Cable
Accessories:
Supplied 060A11 Acetal clamp nut 3/4-16-2A thd 3/4" hex 1


( WM ) Water Resistant Cable
Accessories:
Supplied 060A13 Metric Acetal clamp nut M20 x 1.5-6g thd 20 mm hex 1
