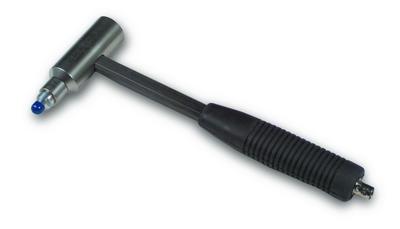

modally tuned® impulse hammer w/force sensor and tips, 0 to 5k lbf, 1 mv/lbf (0.23 mv/n)

Impact Hammer, ICP®

Model 086D05

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 5k lbf, 1 mV/lbf (0.23 mV/N)

  • Sensitivity: (±15%)1 mV/lbf (0.23 mV/N)
  • Measurement Range: ±5000 lbf pk (±22240 N pk)
  • Hammer Mass: 0.7 lb (0.32 kg)

Specification Notes


[1] Typical.
[2] See PCB Declaration of Conformance PS068 for details.

English: SI:
Performance
Sensitivity (±15 %) 1 mV/lbf 0.23 mV/N
Measurement Range ±5000 lbf pk ±22240 N pk
Resonant Frequency ≥22 kHz ≥22 kHz
Non-Linearity ≤1 % ≤1 %
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm [1]
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant ≥2000 sec ≥2000 sec [1]
Physical
Sensing Element Quartz Quartz
Sealing Epoxy Epoxy
Hammer Mass 0.7 lb 0.32 kg
Head Diameter 1.0 in 2.5 cm
Tip Diameter 0.25 in 0.63 cm
Hammer Length 9.0 in 22.7 cm
Electrical Connection Position Bottom of Handle Bottom of Handle
Extender Mass Weight 7.0 oz 200 gm
Electrical Connector BNC Jack BNC Jack

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
084A09 Extender mass, stainless steel, 1.0" dia. x 2.00", 7.0 oz (200 gm), for Model 086D05 1
084A50 Super soft, grey, 1/4-20 thread tip (for Model 086D05) 1
084A51 1/4-20 to 10-32 thread adaptor (for Model 084A50 tip to Model 086D05) 1
084B03 Hard, stainless steel, 10-32 thread tip, 3.0 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05) 1
084B04 Medium, white, 10-32 thread tip, 2.5 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05) 1
HCS-2 Calibration of Series 086B to 086D instrumented hammers only 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 2
084C05 Soft, black, 10-32 thread tip, 2.3 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05) 2
085A10 Protective cap (for medium hammer tip) 2
