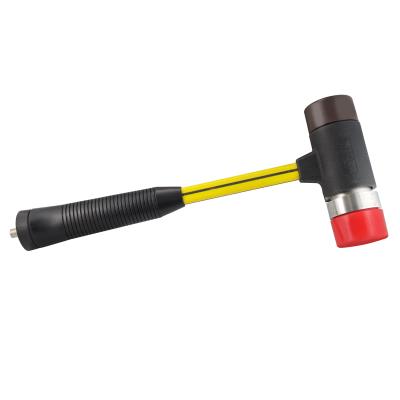

short-sledge impulse hammer w/force sensor & tips, 0 to 5k lbf, 1 mv/lbf (0.23 mv/n), 2.4-lb head

Impact Hammer, ICP®

Model 086D20

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-2 is 10 Wks
Lead Time for 3-5 is 12 Wks
  • CE
  • IP

Short-sledge Impulse Hammer w/force sensor & tips, 0 to 5k lbf, 1 mV/lbf (0.23 mV/N), 2.4-lb head

  • Sensitivity: (±15%)1 mV/lbf (0.23 mV/N)
  • Measurement Range: ±5000 lbf pk (±22240 N pk)
  • Hammer Mass: 2.4 lb (1.1 kg)

Specification Notes

[1] Typical.
[2] See PCB Declaration of Conformance PS136 for details.

English: SI:
Performance
Sensitivity (±15 %) 1 mV/lbf 0.23 mV/N
Measurement Range ±5000 lbf pk ±22240 N pk
Resonant Frequency ≥12 kHz ≥12 kHz
Non-Linearity ≤1 % ≤1 %
Electrical
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm [1]
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant ≥1400 sec ≥1400 sec [1]
Physical
Sensing Element Quartz Quartz
Sealing Hermetic Hermetic
Hammer Mass 2.4 lb 1.1 kg
Head Diameter 2.0 in 5.1 cm
Tip Diameter 2.0 in 5.1 cm
Hammer Length 14.5 in 37 cm
Electrical Connection Position Bottom of Handle Bottom of Handle
Electrical Connector BNC Jack BNC Jack

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
084A60 Tip - super soft plastic, gray polyurethane (for Model 086D20) 1
084A61 Tip - soft plastic, brown polyurethane (for Model 086D20) 1
084A62 Tip - medium plastic, red polyurethane (for Model 086D20) 1
084A63 Tip - hard plastic, black polyurethane (for Model 086D20) 1
HCS-2 Calibration of Series 086B to 086D instrumented hammers only 1

Optional Versions

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 8.5 to 15 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Output Bias Voltage 8.5 to 15 VDC
