csi data collector interface coiled polyurethane cable, 10-ft, 2-pin mil lockable environmental boot to 25-pin

CUSTOM CABLE, 050FV010CV

Model 050FV010CV

Add to Quote
  • IP

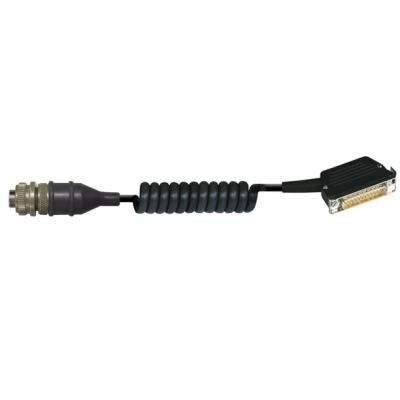

CSI data collector interface coiled polyurethane cable, 10-ft, 2-pin MIL lockable environmental boot to 25-pin

Model 050 coiled cable, 10 ft., 2-socket MIL with extended strain relief to 25-pin d-sub for CSI 2120
  • Temperature Range: -22 to 176 °F (-30 to 80 °C)
  • Connection Type: 2-socket
  • Cable Style: Multi Conductor - Shielded

Specification Notes

[1] Typical.

English: SI:
Performance
Number of Conductors 2 2
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Connector Model (sensor side) extended strain relief extended strain relief
Connector Style (sensor side) MIL-C-5015 MIL-C-5015
Connection Type (sensor side) 2-socket 2-socket
Coupling Method (sensor side) Threaded Threaded
Connector Model (termination) 25-pin d-sub 25-pin d-sub
Coupling Method (termination) Threaded Threaded
Environmental
Temperature Range -22 to 176 °F -30 to 80 °C
Electrical
Capacitance 31 pF/ft 102 pF/m [1]
Physical
Cable Jacket Diameter (±.010 in) 0.21 in 5.33 mm [1]
Cable Jacket Material TPE TPE
Cable Jacket Color Black Black
Conductor Style Stranded - 21 Strands 36 AWG Stranded - 21 Strands 36 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (23 AWG) 0.028 in 0.711 mm [1]
Insulation Material Over Conductor(s) Polypropylene Polypropylene
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Tinned Copper Tinned Copper
Bend Radius 2.1 in 53.3 mm
Weight 0.25 lb 0.11 kg [1]
Size - Length 10 ft 3.048 m

* All specifications are at room temperature unless otherwise specified.
