Model : TLD352A56 | Accelerometer, ICP®

Click for lead times
Lead Time for 6-10 is 14 Wks

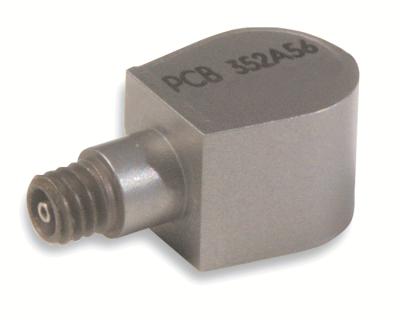

high sensitivity, miniature (1.8 gm), ceramic shear icp® accel., 100 mv/g, with teds and 5-44 coaxial conn., teds ver 1.0
Add to Cart for Quote

High sensitivity, miniature (1.8 gm), ceramic shear ICP® accel., 100 mV/g, with TEDS and 5-44 coaxial conn., TEDS Ver 1.0

  • Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))
  • Measurement Range: ±50 g pk ( ±490 m/s² pk)
  • Broadband Resolution: 0.0006 g rms ( 0.006 m/s² rms)
  • Frequency Range: (±5%)0.5 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.06 oz ( 1.8 gm)

RELATED PRODUCTS



002P10
002P10

General purpose coaxial cable, white FEP jacket, 10-ft, 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
003P10
003P10

Low-noise coaxial cable, blue TFE jacket, 10-ft, micro 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
018C10
018C10

Miniature, lightweight, black coaxial cable, vinyl insulation jacket, 10-ft, 5-44 plug to BNC plug



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²)
Measurement Range ±50 g pk ±490 m/s² pk
Frequency Range (±5 %) 0.5 to 10000 Hz 0.5 to 10000 Hz
Frequency Range (±10 %) 0.3 to 15000 Hz 0.3 to 15000 Hz
Resonant Frequency ≥45 kHz ≥45 kHz
Broadband Resolution (1) 0.0006 g rms 0.006 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
TEDS Compliant Yes Yes [ 3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Electrical
Excitation Voltage 22 to 30 VDC 22 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8.5 to 15.5 VDC 8.5 to 15.5 VDC
Discharge Time Constant 0.5 to 1.5 sec 0.5 to 1.5 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 120 µg/√Hz 1180 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 40 µg/√Hz 392 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 30 µg/√Hz 294 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 10 µg/√Hz 98.1 (µm/sec2)/√Hz [ 2]
Physical
Size - Height 0.26 in 6.6 mm
Size - Length 0.57 in 14.5 mm
Size - Width 0.30 in 7.6 mm
Weight 0.06 oz 1.8 gm [ 2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 5-44 Coaxial 5-44 Coaxial
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[ 2] Typical.
[ 4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A31 Removal tool (for Model 352A56) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( TLA ) TEDS LMS International - Free Format


( TLB ) TEDS LMS International - Automotive Format


( TLC ) TEDS LMS International - Aeronautical Format


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
