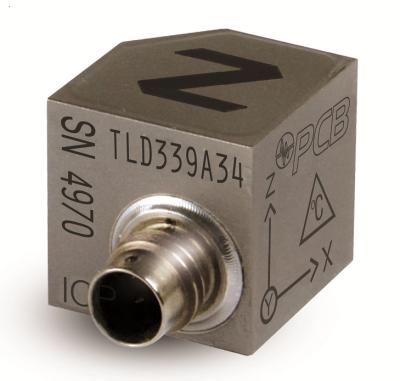

Model : TLD339A34 | Triaxial ICP® Accelerometer

Click for lead times
quartz shear triaxial icp® accelerometer, 50 mv/g, 2 to 5k hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient ltc, +325f temp rating, teds 1.0
$ 1,637.00 USD
(Pricing valid in US only!)

Quartz shear triaxial ICP® accelerometer, 50 mV/g, 2 to 5k Hz, titanium housing, 1/4-28 4-pin, 5-40 stud mount, low temperature coefficient LTC, +325F temp rating, TEDS 1.0


  • Sensitivity: (±10%)50 mV/g ( 5.1 mV/(m/s²))
  • Measurement Range: ±100 g pk ( ±980 m/s² pk)
  • Electrical Connector: 1/4-28 4-Pin

RELATED PRODUCTS



010G10
010G10

4-conductor, shielded, FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add to Cart
034G10
034G10

4-conductor, low noise, shielded FEP cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z)



Add to Cart for Quote
Add to Cart
034W10
034W10

4-conductor, twisted bundle, low noise, shielded, lightweight FEP cable, 10-ft, 1/4-28 4-socket plug, IP68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add to Cart
078G10
078G10

4-conductor, twisted bundle, low noise, shielded, flexible polyurethane cable, 10-ft, 1/4-28 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
078W10
078W10

4-conductor, twisted bundle, low noise, shielded, flexible polyurethane cable, 10-ft, 1/4-28 4-socket plug, IP-68 rated to triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC)



Add to Cart for Quote
Add to Cart
036G10
036G10

4-conductor, silicone jacket cable, 10-ft, 4-socket plug to (3) BNC plugs (labeled X, Y, Z)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 50 mV/g 5.1 mV/(m/s²)
Measurement Range ±100 g pk ±980 m/s² pk
Frequency Range (±5 %) 2 to 5000 Hz 2 to 5000 Hz
Frequency Range (±10 %) 1 to 8000 Hz 1 to 8000 Hz
Resonant Frequency ≥35 kHz ≥35 kHz
Broadband Resolution (1) .005 g rms .049 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
TEDS Compliant (Per IEEE 1451.4) Yes Yes
Environmental
Overload Limit (Shock) ±5000 g pk ±49000 m/s² pk
Temperature Range (Operating) -65 to 325 °F -54 to 163 °C
Temperature Response See Graph See Graph [ 2]
Temperature Coefficient of Sensitivity -.03 %/°F -.06 %/°C [ 2]
Base Strain Sensitivity .001 g/µε .0098 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 21 to 30 VDC 21 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Discharge Time Constant .2 to .8 sec .2 to .8 sec
Settling Time (within 10% of bias) <5 sec <5 sec
Spectral Noise (1 Hz) 2000 µg/√Hz 19600 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 400 µg/√Hz 3920 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 100 µg/√Hz 980 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 kHz) 30 µg/√Hz 294 (µm/sec2)/√Hz [ 2]
Physical
Sensing Element Quartz Quartz
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Size - Height 0.55 in 14.0 mm
Size - Length 0.80 in 20.3 mm
Size - Width 0.55 in 14.0 mm
Weight 0.37 oz 10.5 gm [ 2]
Electrical Connector 1/4-28 4-Pin 1/4-28 4-Pin
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 10 to 20 in-lb 113 to 225 N-cm
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A145 Adhesive mtg base, 0.75" hex x 0.2" thk, 5-40 tapped hole, w/isolating hardcoat finish 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
ACS-1T Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1


Optional Versions


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4


( TLA ) TEDS LMS International - Free Format


( TLB ) TEDS LMS International - Automotive Format


( TLC ) TEDS LMS International - Aeronautical Format
