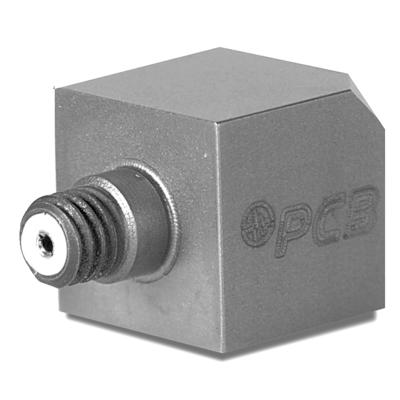

modal array, ceramic shear icp® accel, 1000 mv/g, 0.5 to 3k hz, 10-32 side conn., 5-40 stud mount, teds 1.0

Accelerometer, ICP®

Model TLD333B50

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
24 Lead Time for 1-10 is 4 Wks.
Lead Time for 11-20 is 5 Wks.
  • CE
  • IP

Modal array, ceramic shear ICP® accel, 1000 mV/g, 0.5 to 3k Hz, 10-32 side conn., 5-40 stud mount, TEDS 1.0

  • Sensitivity: (±10%)1000 mV/g (102 mV/(m/s²))
  • Measurement Range: ±5 g pk (±49 m/s² pk)
  • Broadband Resolution: 0.00005 g rms (0.0005 m/s² rms)
  • Frequency Range: (±5%)0.5 to 3000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.26 oz (7.5 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±10 %) 1000 mV/g 102 mV/(m/s²)
Measurement Range ±5 g pk ±49 m/s² pk
Frequency Range (±5 %) 0.5 to 3000 Hz 0.5 to 3000 Hz
Resonant Frequency ≥20 kHz ≥20 kHz
Phase Response (±5 °) (at 70°F [21°C]) 2.5 to 3000 Hz 2.5 to 3000 Hz
Broadband Resolution (1) 0.00005 g rms 0.0005 m/s² rms [2]
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [3]
Environmental
Overload Limit ±4000 g pk ±39000 m/s² pk
Temperature Range 0 to +150 °F -18 to +66 °C
Temperature Response See Graph %/°F See Graph %/°F [2]
Base Strain Sensitivity 0.01 g/µε 0.1 (m/s²)/µε [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤500 Ohm ≤500 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.7 to 2.0 sec 0.7 to 2.0 sec
Spectral Noise (1 Hz) 15 µg/√Hz 150 (µm/sec2)/√Hz [2]
Spectral Noise (10 Hz) 3.8 µg/√Hz 37 (µm/sec2)/√Hz [2]
Spectral Noise (100 Hz) 1.1 µg/√Hz 11 (µm/sec2)/√Hz [2]
Spectral Noise (1 kHz) 0.4 µg/√Hz 3.9 (µm/sec2)/√Hz [2]
Physical
Size - Length 0.68 in 17.3 mm
Size - Width 0.45 in 11.4 mm
Weight 0.26 oz 7.5 gm [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 5-40 Female 5-40 Female
Mounting Torque 4 to 5 in-lb 45 to 56 N-cm

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A25 Adhesive base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat (for Series 333B30/B40/B50) 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
081A27 Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
M081A27 Metric mtg stud, 5-40 to M3 x 0.50 long 1

Optional Versions


(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

English SI
Output Bias Voltage 7.5 to 13 VDC

(TLA) TEDS LMS International - Free Format

English SI
Output Bias Voltage 7.5 to 13 VDC

(TLB) TEDS LMS International - Automotive Format

English SI
Output Bias Voltage 7.5 to 13 VDC

(TLC) TEDS LMS International - Aeronautical Format

English SI
Output Bias Voltage 7.5 to 13 VDC

(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4

English SI
Output Bias Voltage 7.5 to 13 VDC
