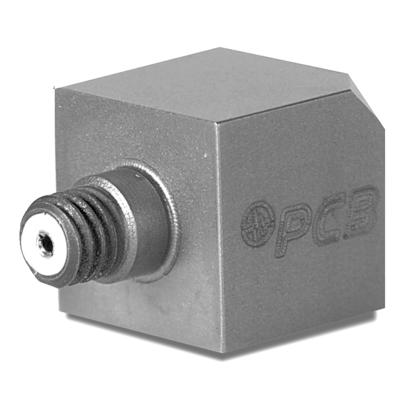

Model : TLD333B42 | Accelerometer, ICP®

Click for lead times
modal array, ceramic shear icp® accel, 500 mv/g, 0.5 to 3k hz, 10-32 side conn., adhesive mount, teds 1.0
$ 411.00 USD
(Pricing valid in US only!)

Modal array, ceramic shear ICP® accel, 500 mV/g, 0.5 to 3k Hz, 10-32 side conn., adhesive mount, TEDS 1.0

  • Sensitivity: (±10%)500 mV/g ( 51.0 mV/(m/s²))
  • Measurement Range: ±10 g pk ( ±98 m/s² pk)
  • Broadband Resolution: 0.00005 g rms ( 0.0005 m/s² rms)
  • Frequency Range: (±5%)0.5 to 3000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.26 oz ( 7.5 gm)
English: SI:
Performance
Sensitivity (±10 %) 500 mV/g 51.0 mV/(m/s²)
Measurement Range ±10 g pk ±98 m/s² pk
Frequency Range (±5 %) 0.5 to 3000 Hz 0.5 to 3000 Hz
Resonant Frequency ≥20 kHz ≥20 kHz
Phase Response (±5 °) 2 to 3000 Hz 2 to 3000 Hz
Broadband Resolution (1) 0.00005 g rms 0.0005 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 % [ 3]
Environmental
Overload Limit ±5000 g pk ±49000 m/s² pk
Temperature Range 0 to +150 °F -18 to +66 °C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Base Strain Sensitivity 0.01 g/µε 0.1 (m/s²)/µε [ 2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 2.5 sec 1.0 to 2.5 sec
Spectral Noise (10 Hz) 3.8 µg/√Hz 37 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 1.1 µg/√Hz 11 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 0.4 µg/√Hz 3.9 (µm/sec2)/√Hz [ 2]
Physical
Size - Length 0.68 in 17.3 mm
Size - Width 0.45 in 11.4 mm
Weight 0.26 oz 7.5 gm [ 2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Transverse sensitivity is typically ≤ 3%.
[ 2] Typical.
[ 4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( T ) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
English SI
Output Bias Voltage 7.5 to 13 VDC


( TLA ) TEDS LMS International - Free Format
English SI
Output Bias Voltage 7.5 to 13 VDC


( TLB ) TEDS LMS International - Automotive Format
English SI
Output Bias Voltage 7.5 to 13 VDC


( TLC ) TEDS LMS International - Aeronautical Format
English SI
Output Bias Voltage 7.5 to 13 VDC


( TLD ) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
English SI
Output Bias Voltage 7.5 to 13 VDC
