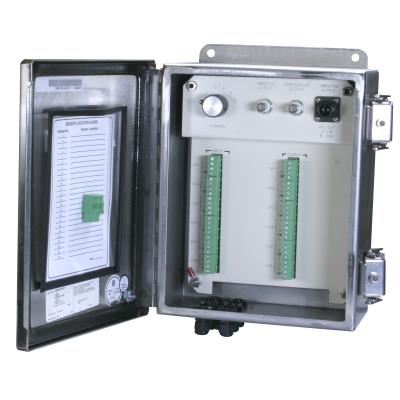

stainless steel switch box with expansion jack and six pgme07 cord grips

SS SWITCH BOX WITH EXPANSION JACK

Model SS691C41/691010

Add to Quote
  • CE
  • IP

Stainless Steel Switch box with expansion jack and six PGME07 cord grips

S
  • Channels: 6
  • Housing Material: Fiberglass
  • Enclosure Rating: IP66 (Nema 4X)

Specification Notes

[1] See PCB Declaration of Conformance PS152 for details.

English: SI:
Performance
Channels 6 6
Environmental
Enclosure Rating IP66 Nema 4X
Physical
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Electrical Connector (Output, Temperature) BNC Jack BNC Jack
Electrical Connector (Output, Vibration) 2-Pin Mil 2-Pin Mil
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output, vibration, Temperature) Terminal Block Terminal Block
Housing Material Fiberglass Fiberglass
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 6 in 152 mm
Weight 5.0 lb 2.2 kg

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
080A192 4-position terminal block for use with model 691B40 1

Optional Versions

(PS) Painted Steel

English SI
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 6 in 152 mm
Weight 7 lb 3.2 kg
Enclosure Rating IP65 Nema 12

(SS) Stainless Steel Enclosure

English SI
Weight 8.8 lb 4.0 kg
Size - Height 10 in 254 mm
Size - Width 8 in 203 mm
Size - Depth 4 in 101 mm
