2-socket straight high temperature (+356 f) pps connector with stainless steel collar and fkm heat shrink strain relief **not field installable, no individual sales**

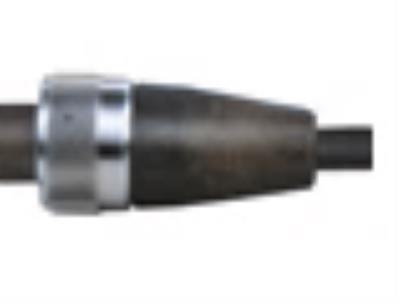

2 SOCKET STRAIGHT HT CONNECTOR

Model PA

  • IP

2-socket straight high temperature (+356 F) PPS connector with stainless steel collar and FKM heat shrink strain relief **Not field installable, no individual sales**

  • Connector Style: MIL-C-5015
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +356 °F (-55 to +180 °C)

Specification Notes

English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -67 to +356 °F -55 to +180 °C
Physical
ROHS Compliant Yes Yes
Size - OD .75 in 19.1 mm
Size - Length 1.63 in 41.4 mm
Size - Height 1.5 in 38.1 mm
Weight 0.65 oz 18.4 gm

* All specifications are at room temperature unless otherwise specified.
