ballistic shot shell pressure sensor, 103,420 kpa, 0.04 pc/kpa, m10x1 integral mtg thd

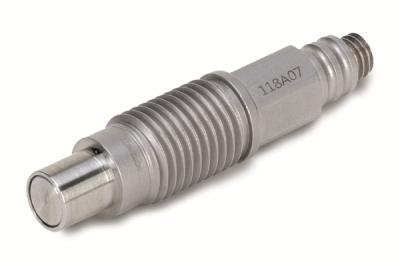

Charge Output Pressure Sensor

Model M118A07

  • CE
  • IP

Ballistic shot shell pressure sensor, 103,420 kPa, 0.04 pC/kPa, M10x1 integral mtg thd

  • Measurement Range: 15 kpsi (103400 kPa)
  • Sensing Element: Quartz
  • Temperature Range: -50 to +325 °F (-46 to +163 °C)
  • Electrical Connector: 10-32 Coaxial Jack
  • Weight: 0.52 oz (14.6 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Non-Linearity for maximum pressure will be ≤ 2.0%
[3] Typical.
[4] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) 0.28 pC/psi 0.041 pC/kPa
Sensitivity (±15 %) 0.28 pC/psi 0.041 pC/kPa
Measurement Range 15 kpsi 103400 kPa
Maximum Pressure 35 kpsi 241000 kPa [2]
Resonant Frequency ≥175 kHz ≥175 kHz
Rise Time (Reflected) ≤2.5 µ sec ≤2.5 µ sec
Non-Linearity ≤.5 % FS ≤.5 % FS [1]
Environmental
Acceleration Sensitivity 0.03 psi/g 0.021 kPa/(m/s²) [3]
Temperature Range (Operating) -50 to +325 °F -46 to +163 °C
Temperature Coefficient of Sensitivity ≤0.06 %/°F ≤0.108 %/°C
Maximum Flash Temperature 3000 °F 1649 °C
Maximum Vibration 2000 g pk 19600 m/s² pk
Maximum Shock 20000 g pk 196000 m/s² pk
Electrical
Output Polarity (Positive Pressure) Negative Negative
Capacitance 5 pF 5 pF [3]
Insulation Resistance ≥1000000000000 Ohm ≥1000000000000 Ohm
Physical
Sensing Element Quartz Quartz
Housing Material Stainless Steel Stainless Steel
Diaphragm Stainless Steel Stainless Steel
Sealing Epoxy Epoxy
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Weight 0.52 oz 14.6 gm

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
PCS-1BD 0
065A19 Spacer set, 0.250" ID (for conformal Models 117B01-117B65 & 117B101-117B999) 1
065A06 Seal ring, 0.318" OD x 0.250" ID x 0.010" thick, 316L SS (for Series 108, 109, 118 and 119) 3
