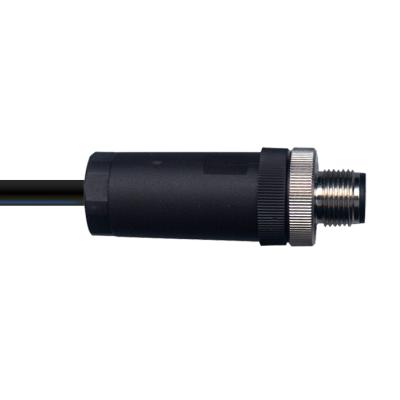

5-pin m12 turck connector

Cable Connector

Model HX

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

5-pin M12 Turck connector

  • Connector Style: Circular
  • Connector Style: Multi-conductor
  • Connection Type: 5-pin
  • Connection Type: Plug (male pin)
  • Coupling Thread: No English equivalent (M12 x 1 Male)
  • Temperature Range: -40 to +185 °F (-40 to +85 °C)

Specification Notes

English: SI:
Connector Style Circular Circular
Connector Style Multi-conductor Multi-conductor
Connection Type 5-pin 5-pin
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread No English equivalent M12 x 1 Male
Strain Relief Optional Optional
Temperature Range -40 to +185 °F -40 to +85 °C
ROHS Compliant Yes Yes
Housing Material PBT, Black PBT, Black
Size - OD .78 in 20 mm
Size - Length 2.4 in 61 mm
Weight .83 oz 23.5 g

* All specifications are at room temperature unless otherwise specified.
