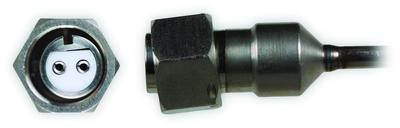

CABLE CONNECTOR

Model GN

2-socket 7/16-27 UNS-2B plug, 900F operating temperature (for 013 hardline cable)

***Maximum cable length is 33ft (10m)***

Replaces Legacy Model Endevco 6918MX
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Temperature Range: -65 to 900 °F (-54 to 482 °C)

Specification Notes


[1] When used with 013 cable

English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Environmental
Temperature Range (Maximum) -65 to 900 °F -54 to 482 °C
Radiation Exposure Limit (Integrated Neutron Flux) 1 E10 N/cm² 1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Physical
Size - OD 0.58 in 15 mm
Size - Hex 0.5 in 13 mm
Size - Length 0.93 in 24 mm
Weight 0.43 oz 12 gm
Sealing Hermetic Hermetic [1]

* All specifications are at room temperature unless otherwise specified.
