CHARGE OUTPUT ACCEL

Model EX357E93

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

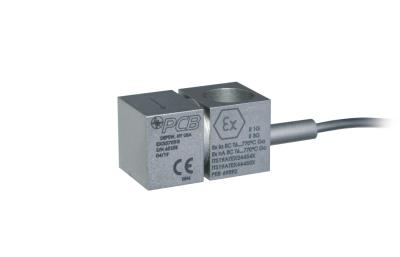

Charge output accel, with UHT-12TM shear sensing crystal, 2.3 pC/g, +1200 F operation, int hardline cable with smaller 10-32 coax, with intrinsic safety approvals

Replaces Legacy Models Endevco 6243M2 and 6243M9

Sensitivity: (±10%)2.3 pC/g (0.23 pC/(m/s²))
Measurement Range: ±1000 g pk (±9800 m/s² pk)
Frequency Range: (±5%)3 kHz
Cable Termination: 10-32 Coaxial Jack
Weight: 1.6 oz (45 gm)

Additional configurations:

Specification Notes

[1] Typical.
[2] Additional cable length will add approx. 100pF/ft.
[1] Typical.
[3] See PCB Declaration of Conformance PS199 for details.

	English:	SI:
Performance
Sensitivity (±10 %)	2.3 pC/g	0.23 pC/(m/s²)
Measurement Range	±1000 g pk	±9800 m/s² pk
Frequency Range (±5 %)	3 kHz	3 kHz
Frequency Range (±1 dB)	5 kHz	5 kHz
Resonant Frequency	≥15 kHz	≥15 kHz
Non-Linearity (per full scale range)	≤2.5 %	≤2.5 %
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±2000 g pk	±19600 m/s² pk
Temperature Range (Operating)	-67 to 1200 °F	-55 to 649 °C
Temperature Range (Survivable Limit)	-67 to 1400 °F	-55 to 760 °C
Temperature Range (Cable Termination)	-67 to 900 °F	-55 to 482 °C
Temperature Response	See graph	See graph	[1]
Radiation Exposure Limit (Integrated Neutron Flux)	1 E10 N/cm²	1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux)	1 E8 rad	1 E8 rad
Electrical
Capacitance	1000 pF	1000 pF	[1] [2]
Insulation Resistance (@ 1200°F[649°C])	≥10 kohm	≥10 kohm
Insulation Resistance (@ 70° F [21°C])	≥100 MOhm	≥100 MOhm
Electrical Isolation	Signal isolated from case	Signal isolated from case
Physical
Sensing Element	UHT-12™	UHT-12™
Sensing Geometry	Shear	Shear
Housing Material	Inconel	Inconel
Sealing (Sensor Housing)	Hermetic	Hermetic
Sealing (Connector)	Welded Hermetic	Welded Hermetic
Size - Height	.56 in	14.2 mm
Size - Length	.95 in	24.1 mm
Size - Width	.56 in	14.2 mm
Weight (without cable)	1.6 oz	45 gm	[1]
Electrical Connector	Integral Hardline Cable	Integral Hardline Cable
Cable Length	10 ft	3.05 m
Cable Type	015 Hardline Cable	015 Hardline Cable
Cable Termination	10-32 Coaxial Jack	10-32 Coaxial Jack
Mounting	Through Hole	Through Hole

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A116	Mounting bolt, 10-32 UNJF-3A x 5/8", Inconel 718	1
ACS-1	Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable	1
