HIGH SENSITIVITY PRESSURE SENSOR

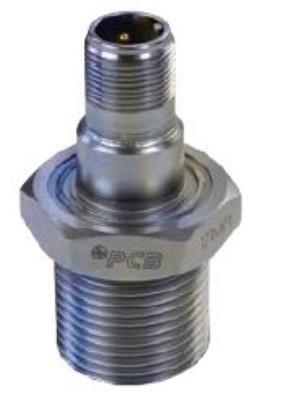

Model EX171A01

Add to Quote
  • CE
  • EX
  • IP

High Sensitivity Pressure Sensor, 1200 pC/psi, 10 psi range, 2-Pin connector, 1-1/8"-12 UNF-2A port, hazardous area ATEX, IECEx and ETL approved.

  • Measurement Range: 10 psi (68.9 kPa)
  • Temperature Range: 0 to 500 °F (-18 to 260 °C)
  • Weight: 6.5 oz (185 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS132 for details.

English: SI:
Performance
Sensitivity (±30 %) 1200 pC/psi 174 pC/kPa
Sensitivity (±30 %) 1200 pC/psi 174 pC/kPa
Measurement Range 10 psi 68.9 kPa
Maximum Pressure (Total) 600 psi 4136 kPa
Resonant Frequency ≥25 kHz ≥25 kHz
Rise Time (Reflected) ≤10 µ sec ≤10 µ sec
Non-Linearity ≤1.0 % FS ≤1.0 % FS [1]
Environmental
Maximum Shock 1000 g pk 1000 g pk
Acceleration Sensitivity .005 psi/g .0035 kPa/(m/s²) [2]
Temperature Range (Operating) 0 to 500 °F -18 to 260 °C
Temperature Coefficient of Sensitivity ≤0.08 %/°F ≤0.144 %/°C
Hazardous Area Approval See Manual See Manual
Electrical
Output Polarity Differential Differential
Capacitance 12000 pF 12000 pF [2]
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Internal Resistance (@500F) ≥500 kohm ≥500 kohm
Internal Resistance ≥1 GOhm ≥1 GOhm
Physical
Sensing Geometry Compression Compression
Housing Material 316L Stainless Steel 316L Stainless Steel
Diaphragm 316L Stainless Steel 316L Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Weight 6.5 oz 185 gm [2]

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
PCS-1 Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. 0
31061-01 2
