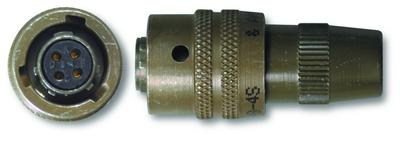

4-socket ms3116 bayonet connector (meets mil-c-26482)

CONNECTOR 4 SOCKET BAYONET

Model DR

Add to Quote
  • IP

4-socket MS3116 bayonet connector (meets MIL-C-26482)

    Specification Notes

    English: SI:
    Performance
    Connector Style 3116 3116
    Connector Style Multi-conductor Multi-conductor
    Connection Type 4-socket 4-socket
    Coupling Method Bayonet Bayonet
    Strain Relief None None
    Environmental
    Temperature Range -67 to +257 °F -55 to +125 °C
    Physical
    ROHS Compliant No No
    Size - OD 0.71 in 18.03 mm
    Size - Length 1.76 in 44-96 mm
    Size - Width 0.75 in 19.05 mm
    Weight 0.79 oz 22.34 gm

    * All specifications are at room temperature unless otherwise specified.
