2-pin, ms3101a connector (meets mil-c-5015)

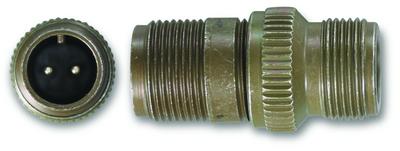

CD - 2 PIN MIL-3101A

Model CD

  • IP

2-pin, MS3101A connector (meets MIL-C-5015)

  • Connector Style: 3101A
  • Connection Type: 2-pin
  • Coupling Thread: 5/8-24 male
  • Temperature Range: -67 to +257 °F (-55 to +125 °C)

Specification Notes


English: SI:
Performance
Connector Style 3101A 3101A
Connection Type 2-pin 2-pin
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 male 5/8-24 male
Strain Relief None None
Environmental
Temperature Range -67 to +257 °F -55 to +125 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.75 in 19.05 mm
Size - Length 1.46 in 37.08 mm
Weight 0.50 oz 14.11 gm

* All specifications are at room temperature unless otherwise specified.
