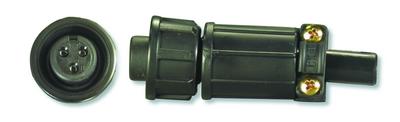

3-socket, nylon connector (mil-c-5015 compatible)

Cable Connector

Model BV

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-15 is 14 Dys.
Lead Time for 16-30 is 3 Wks.
  • IP

3-socket, Nylon connector (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 3-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +250 °F (-55 to +121 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 3-socket 3-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Clamp Clamp
Environmental
Temperature Range -67 to +250 °F -55 to +121 °C
Physical
Size - OD 0.83 in 21.08 mm
Size - Length 2.44 in 61.98 mm
Weight 0.45 oz 12.81 gm

* All specifications are at room temperature unless otherwise specified.
