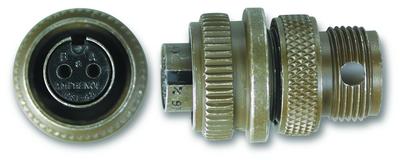

2-socket, high temperature, modified ms3106 connector for right angle use (mil-c-5015 compatible)

Cable Connector

Model BT

  • IP

2-socket, high temperature, modified MS3106 connector for Right Angle use (MIL-C-5015 compatible)

  • Connector Style: MIL-C-5015
  • Connector Style: Right Angle
  • Connection Type: 2-socket
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -65 to +325 °F (-55 to +163 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Right Angle Right Angle
Connection Type 2-socket 2-socket
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -65 to +325 °F -55 to +163 °C
Physical
ROHS Compliant Yes Yes
Size - OD 0.87 in 22 mm
Size - Length 1.4 in 36 mm
Weight 0.49 oz 14 gm

* All specifications are at room temperature unless otherwise specified.
