tnc male plug threaded connector

TNC MALE PLUG THREADED

Model AT

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

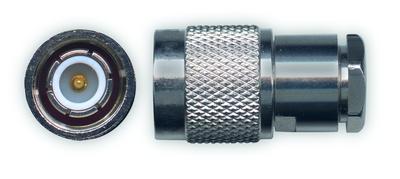

TNC male plug threaded connector

  • Connector Style: Coaxial
  • Connector Style: TNC
  • Connection Type: Plug (male pin)
  • Temperature Range: -85 to 329 °F (-65 to 165 °C)

Specification Notes

English: SI:
Performance
Connector Style Coaxial Coaxial
Connector Style TNC TNC
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Environmental
Temperature Range -85 to 329 °F -65 to 165 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 5000 MOhm 5000 MOhm
Physical
Housing Material Brass Brass
Finish Nickel Coated Nickel Coated
Size - OD .59 in 15 mm
Size - Length 1.0 in 25 mm
Weight .74 oz 23 gm

* All specifications are at room temperature unless otherwise specified.
