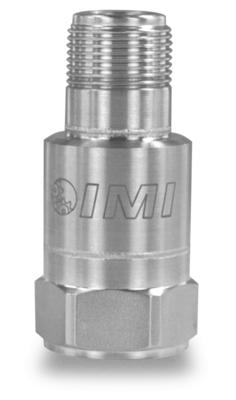

Intrinsically-safe, industrial, quartz shear ICP® accel., 100 mV/g, 0.3 to 12k Hz, top exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration
- Sensitivity:
(±5%)100 mV/g
(
10.2 mV/(m/s²))
- Frequency Range:
(±3dB)20 to 720000 cpm
(
0.33 to 12000 Hz)
- Sensing Element:
Quartz
- Measurement Range:
±50 g
(
±490 m/s²)
- Weight:
3.3 oz
(
94 gm)
|
English: |
SI: |
|
| Performance |
| Sensitivity (±5 %) |
100 mV/g |
10.2 mV/(m/s²) |
[
1]
|
| Measurement Range |
±50 g |
±490 m/s² |
|
| Frequency Range (±5 %) |
60 to 240000 cpm |
1 to 4000 Hz |
[
3]
|
| Frequency Range (±10 %) |
40 to 390000 cpm |
0.67 to 6500 Hz |
|
| Frequency Range (±3 dB) |
20 to 720000 cpm |
0.33 to 12000 Hz |
|
| Resonant Frequency |
1080 kcpm |
18 kHz |
[
4]
|
| Broadband Resolution (1) |
1000 µg |
9810 µm/sec2 |
[
4]
|
| Non-Linearity |
±1 % |
±1 % |
[
2]
|
| Transverse Sensitivity |
≤5 % |
≤5 % |
|
| Environmental |
| Overload Limit (Shock) |
5000 g pk |
49050 m/s² pk |
|
| Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
| Temperature Response |
See Graph %/°F |
See Graph %/°F |
[
4]
|
| Enclosure Rating |
IP68 |
IP68 |
|
| Hazardous Area Approval |
EEx ia IIC T4, -54°C<=Ta<=121°C, II 1 G |
EEx ia IIC T4, -54°C<=Ta<=121°C, II 1 G |
|
| Electrical |
| Settling Time (within 1% of bias) |
≤10 sec |
≤10 sec |
|
| Discharge Time Constant |
≥0.5 sec |
≥0.5 sec |
|
| Excitation Voltage |
18 to 28 VDC |
18 to 28 VDC |
|
| Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
<100 Ohm |
<100 Ohm |
|
| Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
| Spectral Noise (10 Hz) |
50 µg/√Hz |
491 (µm/sec2)/√Hz |
[
4]
|
| Spectral Noise (100 Hz) |
20 µg/√Hz |
196 (µm/sec2)/√Hz |
[
4]
|
| Spectral Noise (1 kHz) |
6 µg/√Hz |
59 (µm/sec2)/√Hz |
[
4]
|
| Electrical Protection |
RFI/ESD |
RFI/ESD |
|
| Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
| Physical |
| Size - Hex |
7/8 in |
22 mm |
|
| Size - Height |
2.06 in |
52.3 mm |
|
| Weight |
3.3 oz |
94 gm |
|
| Mounting Thread |
1/4-28 Female |
1/4-28 Female |
[
5]
|
| Mounting Torque |
2 to 5 ft-lb |
2.7 to 6.8 Nm |
|
| Sensing Element |
Quartz |
Quartz |
|
| Sensing Geometry |
Shear |
Shear |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Welded Hermetic |
Welded Hermetic |
|
| Electrical Connector |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
| Electrical Connection Position |
Top |
Top |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[
1]
Conversion Factor 1g = 9.81 m/s².
[
2]
Zero-based, least-squares, straight line method.
[
3]
The high frequency tolerance is accurate within ±10% of the specified frequency.
[
4]
Typical.
[
5]
1/4-28 has no equivalent in S.I. units.
[
6]
See PCB Declaration of Conformance PS023 or PS061 for details.
Accessories
|
|
|
| Supplied |
| ICS-1 |
Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate |
1 |
| 081A40 |
Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip |
1 |
Optional Versions
(
CS )
Canadian Standards Association Approved Intrinsically Safe
| Hazardous Area Approval |
Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I |
| Hazardous Area Approval |
Ex ia IIC T4, AExia IIC, T4 |
| Hazardous Area Approval |
Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4 |
(
EX )
Hazardous Area Approval- contact factory for specific approvals
| Hazardous Area Approval |
EEx ia IIC T4, -54°C<=Ta<=121°C, II 1 G |
(
LB )
Low Bias Voltage
| Output Bias Voltage |
6 to 8 VDC |
| Excitation Voltage |
12 to 28 VDC |
| Measurement Range |
±35 g |
±343 m/s² |
(
M )
Metric Mount
| Accessories: |
| Supplied |
M081A61 |
Mounting Stud |
1 |
