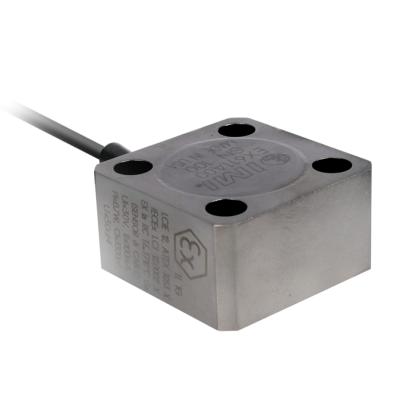

High temperature,intrinsically safe, charge mode accelerometer with UHT-12™ shear sensing crystal, 10 pC/g sensitivity, +1200 degree F, 10 ft integral hard-line cable
When using Model EX682A40 or 421A31 differential charge amplifier, also use 045M21B cable.
- Sensitivity: (±5%)10 pC/g
(1.02 pC/(m/s²))
- Measurement Range: ±200 g pk
(±1962 m/s² pk)
- Frequency Range: (±5%)2.8 kHz
- Weight: 6.3 oz
(180 gm)
RELATED PRODUCTS
|
English: |
SI: |
|
| Performance |
| Sensitivity (±5 %) |
10 pC/g |
1.02 pC/(m/s²) |
|
| Measurement Range |
±200 g pk |
±1962 m/s² pk |
|
| Frequency Range (±5 %) |
2.8 kHz |
2.8 kHz |
[3]
|
| Frequency Range (+10 %) |
3.7 kHz |
3.7 kHz |
[3]
|
| Resonant Frequency |
≥17 kHz |
≥17 kHz |
|
| Non-Linearity |
≤1 % |
≤1 % |
[1]
|
| Transverse Sensitivity |
≤5 % |
≤5 % |
[2]
|
| Environmental |
| Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
| Temperature Range |
-65 to +1200 °F |
-54 to +650 °C |
[5]
|
| Temperature Range |
-165 to +1300 °F |
-109 to +704 °C |
[6]
|
| Temperature Response |
See Graph |
See Graph |
[4]
|
| Base Strain Sensitivity |
0.033 g/µε |
0.32 (m/s²)/µε |
[4]
|
| Radiation Exposure Limit (Integrated Neutron Flux) |
1 E10 N/cm² |
1 E10 N/cm² |
|
| Radiation Exposure Limit (Integrated Gamma Flux) |
1 E8 rad |
1 E8 rad |
|
| Hazardous Area Approval |
Ex ia IIC T6 . . . T 710°C Ga |
Ex ia IIC T6 . . . T 710°C Ga |
|
| Hazardous Area Approval |
IECEx Ex ia IIC T6 . . . T 710°C Ga |
IECEx Ex ia IIC T6 . . . T 710°C Ga |
|
| Electrical |
| Capacitance (Pin to Pin) |
250 pF |
250 pF |
[4]
|
| Capacitance (Pin to Case) |
110 pF |
110 pF |
[4]
|
| Capacitance (Unbalance Between Pins) |
≤2 pF |
≤2 pF |
|
| Insulation Resistance (Pin to Case 70° F) |
>1000000000 Ohm |
>1000000000 Ohm |
[4]
|
| Insulation Resistance (Pin to Pin 70° F) |
>1000000000 Ohm |
>1000000000 Ohm |
|
| Output Polarity |
Differential |
Differential |
|
| Physical |
| Sensing Element |
UHT-12™ |
UHT-12™ |
|
| Sensing Geometry |
Shear |
Shear |
|
| Housing Material |
Inconel |
Inconel |
|
| Sealing |
Hermetic |
Hermetic |
|
| Size - Height |
.787 in |
20 mm |
|
| Size - Length |
1.465 in |
37 mm |
|
| Size - Width |
1.456 in |
37 mm |
|
| Weight (without cable) |
6.3 oz |
180 gm |
[4]
|
| Electrical Connector |
7/16-27 2-Pin |
7/16-27 2-Pin |
|
| Electrical Connection Position |
Side |
Side |
|
| Cable Length |
10 ft |
3.05 m |
|
| Cable Type |
MI Hardline Cable |
MI Hardline Cable |
|
| Mounting |
Through Holes (4) |
Through Holes (4) |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically <= 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Typical.
[5] Continuous
[6] Extreme
[4] Typical.
[7] See PCB Declaration of Conformance PS122 for details.
Accessories
|
|
|
| Supplied |
| ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
| 081A115 |
MOUNTING BOLT, M6 x 1, INCONEL |
4 |
