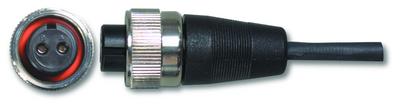

2-socket ms3101a connector with stainless steel collar ring (mil-c-5015 compatible) - *molded connector, not for individual sale

2-SOCKET MS3106A TYPE CONNECTOR

Model DN

  • IP

2-socket MS3101A connector with stainless steel collar ring (MIL-C-5015 compatible) - *Molded connector, not for individual sale

  • Connector Style: MIL-C-5015
  • Connector Style: Multi-conductor
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -67 to +250 °F (-55 to +121 °C)

Specification Notes

English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Multi-conductor Multi-conductor
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Environmental
Temperature Range -67 to +250 °F -55 to +121 °C
Physical
Size - OD 0.825 in 20.955 mm
Size - Length 1.73 in 43.94 mm
Weight 0.39 oz 11.04

* All specifications are at room temperature unless otherwise specified.
