5-digit red led display, 1/8 din panel mount strain gage signal conditioner, 10 vdc excitation, 4.5 mv/vfs

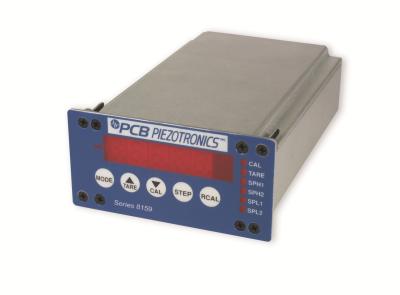

LOAD CELL PANEL METER

Model 8159-0045B

Add to Quote
  • CE
  • IP

5-digit red LED display, 1/8 DIN panel mount strain gage signal conditioner, 10 VDC excitation, 4.5 mV/VFS

    Specification Notes

    [1] At +104 °F (+40 °C)
    [2] Default Value: Internally selectable between 5 VDC and 10 VDC @120 mA max with remote sense short circuit current limiting.
    [3] Default Value: Internally selectable between 1.5 mV/V, 2.5 mV/V, and 3.5 mV/V.
    [4] Upper frequency limited by single pole, low-pass filter.
    [5] Unit set to 230 VAC when ordered as "F8159-0012A", internally selectable
    [6] 1/8 DIN size.
    [7] See PCB Declaration of Conformance PS113 for details.

    English: SI:
    Performance
    Linearity ±0.015 % FS ±0.015 % FS
    Environmental
    Temperature Range +14 to +122 °F -10 to +50 °C
    Temperature Stability ±0.56 µV/°F ±1 µV/°C
    Maximum Humidity 90 % 90 % [1]
    Electrical
    Excitation Voltage (±0.5 %) 10 VDC 10 VDC [2]
    Full Scale Input 4.5 mV/V 4.5 mV/V [3]
    Output Voltage (Analog Signal) ±10 VDC ±10 VDC
    Output Current (Analog Signal) 4 to 20 mA 4 to 20 mA
    Output Bandwidth 0 to 1000 Hz 0 to 1000 Hz [4]
    Digital Resolution 1 part in 19,999 1 part in 19,999
    Common Mode Rejection >120 @50-60 Hz >120 @50-60 Hz
    Display Type 0.4in. (10.2mm) LED 0.4in. (10.2mm) LED
    Display Range ± 99,999 (5 digits) ± 99,999 (5 digits)
    Decimal Point Adjustable via front panel Adjustable via front panel
    Set Points, Open Collector 2 High and 2 Low 2 High and 2 Low
    Shunt Calibration Resistor Accessible through rear panel Accessible through rear panel
    Power Required 115/50 to 60 VAC/Hz 115/50 to 60 VAC/Hz [5]
    Input Fully Differential (bi-polar) Fully Differential (bi-polar)
    Physical
    Electrical Connector (Sensor) 9-Pin Female D-sub 9-Pin Female D-sub
    Electrical Connector (input/output) 15-Pin Male D-sub 15-Pin Male D-sub
    Electrical Connector (AC Power Input) IEC 320 IEC 320
    Size - Height 1.89 in 48 mm [6]
    Size - Width 3.78 in 96 mm [6]
    Size - Diameter 5.88 in 149 mm [6]
    Weight 1.3 lb 0.59 kg

    * All specifications are at room temperature unless otherwise specified.
