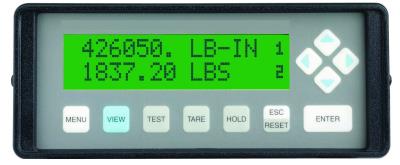

carrier frequency strain gage signal conditioner with a 41/2-digit led digital display and 0 to 5 vdc analog output

STRAIN GAGE SIGNAL CONDITIONER

Model 8120-440A

Add to Quote
  • CE
  • IP

Carrier frequency strain gage signal conditioner with a 41/2-digit LED digital display and 0 to 5 VDC analog output

    Specification Notes

    [1] Installed at Factory
    [2] Optional current output board required
    [3] Update rate for each Analog Output is 1000Hz
    [4] Display update rate is 4Hz

    English: SI:
    Environmental
    Temperature Range +41 to +122 °F +5 to +50 °C
    Temperature Stability ±0.001% of Full Scale per°F ±0.0006% of Full Scale per°C
    Electrical
    Excitation Voltage (±0.01 %) 3Vrms @ 3030Hz 3Vrms @ 3030Hz
    Full Scale Input 0.5 to 5mV/V 0.5 to 5mV/V
    Shunt Calibration Dual polarity shunt calibration with provision for CAL resistor feedback Dual polarity shunt calibration with provision for CAL resistor feedback
    Shunt Calibration Resistor 60kOhm ±0.02%, ±5ppm/°C recommended. Installed Internally [1]
    Common Mode Rejection 120/100dB at 60Hz 120/100dB at 60Hz
    Resolution 0.01% of Full Scale 0.01% of Full Scale
    Output Voltage ±5V or ±10V (user selectable) ±5V or ±10V (user selectable)
    Output Current Optional Optional [2]
    Output Bandwidth 2000 Hz 2000 Hz [3]
    Non-Linearity ±2mV (±5V FS) or ±4mV (±10V FS) ±2mV (±5V FS) or ±4mV (±10V FS)
    Physical
    Display Type 2x16, backlit LCD w/adjustable contrast 2x16, backlit LCD w/adjustable contrast [4]
    Numeric Format Data displayed in engineeringunits with 6 digits (1-2-5 format) Data displayed in engineeringunits with 6 digits (1-2-5 format)
    Display Data Select from Current, Max, Min, Spread, Held data and Tare value Select from Current, Max, Min, Spread, Held data and Tare value
    Display Views Select from 1 Channel, 2 Channel, Limit Status, and I/O Status Select from 1 Channel, 2 Channel, Limit Status, and I/O Status
    Display Units 5 character user-entered unit name is displayed 5 character user-entered unit name is displayed
    Electrical Connector (Sensor) 9-pin Female D-sub 9-pin Female D-sub
    Electrical Connector (input/output) 15-pin Female HD-sub 15-pin Female HD-sub
    Electrical Connector (Serial Port) 9-pin Female D-sub 9-pin Female D-sub
    Electrical Connector (AC Power Input) IEC320 90 to 250 VAC @ 25VA
    Frequency (AC Power Input) 50/60 Hz 50/60 Hz
    Size - Length 8.7 in 221 mm
    Size - Width 6.5 in 165 mm
    Size - Height 2.9 in 74 mm
    Weight 3 lb 1.36 kg

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Supplied
    AC Line Cord 1
