interface cable reduction box 8 x 6 x 4 nema 4x (ip66) fiberglass enc, 12 channels terminal strip input, terminal strip output, no conn ports

Interface Box

Model 691B35

$430.00 USD

(Pricing valid only in the U.S.)

Units in Stock Lead Times
2 Call for Lead Time

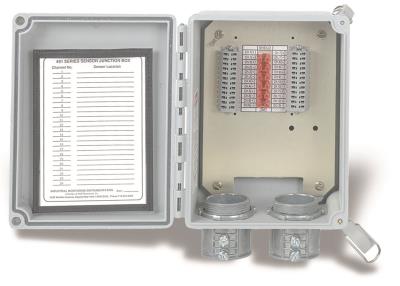

Interface cable reduction box 8" x 6" x 4" NEMA 4X (IP66) fiberglass enc, 12 channels terminal strip input, terminal strip output, no conn ports

Patch panel for wire collection of up to 12 individual sensors. Panel combines wires into one milti- conductor cable for routing over long distances to a central data point. (NEMA 4X, IP66 enclosure) Mounting kit included.
  • Channels: 12
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes


English: SI:
Performance
Channels 12 12
Environmental
Enclosure Rating Nema 4X IP66
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) Terminal Block Terminal Block
Size - Height 8 in 203 mm
Size - Width 6 in 152 mm
Size - Depth 4 in 102 mm
Weight 4.7 lb 2.1 kg

* All specifications are at room temperature unless otherwise specified.

Optional Versions


(691003) 2 Conduit Fittings - 1.5 inch
Accessories:
Supplied 100-7176-90 Accessory for IMI Sensors Product 1
(691005) 12 PGME07 Cord Grips, 1 Conduit Fitting - 1.5 inch
Accessories:
Supplied 100-7176-90 Accessory for IMI Sensors Product 1

(PS) Painted Steel

English SI
Weight 6.7 lb 3.0 kg

(SS) Stainless Steel Enclosure

English SI
Weight 7.6 lb 3.5 kg
