Model: 691A50/12

$420.00 USD
(Pricing valid in US only)

Click for lead times

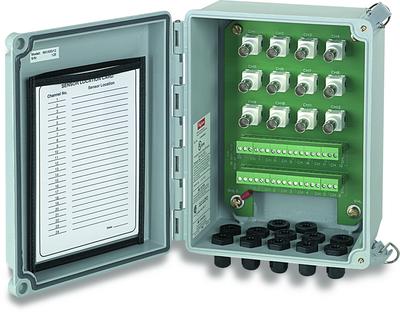

BNC termination box, 8" x 6" x 4" NEMA 4X (IP66) fiberglass enc, 12 channels, terminal strip input, BNC jack output, 12 PGME07 cord grips

  • Channels: 12
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Add this product to my product comparison
Compare selected models ()

Channels12 12
Enclosure RatingNema 4XIP66
Temperature Range-15 to +158 °F-26 to +70 °C
Electrical Connector (Input)Terminal BlockTerminal Block
Electrical Connector (Output)BNC JackBNC Jack
Cable InputPGME07PGME07
Housing MaterialFiberglassFiberglass
Size - Height8 in203 mm
Size - Width6 in152 mm
Size - Depth4 in102 mm
Weight2.5 lb1.14 kg

All specifications are at room temperature unless otherwise specified.


Product Notes
[1] See PCB Declaration of Conformance PS174 for details.
No Accessories
Optional Versions:
(PS) Painted Steel
    Weight5.0 2.3
    Enclosure RatingIP65Nema 12
(SS) Stainless Steel Enclosure
    Enclosure RatingIP66Nema 4X
    Weight5.5 2.5
Product Documents
Additional Downloads None Listed
