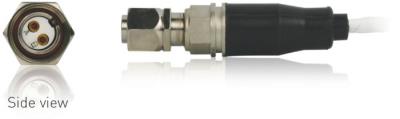

Low noise, twisted pair, PTFE cable, 120-in, 2-socket 7/16-27 UNS-2B plug with splash proof boot to pigtails
Designed to mate with differential type piezoelectric accelerometers which utilize a two pin receptacle with 7/16-27 UNS-2A threads. This cable assembly is designed for continuous use in turbofan environments up to 550°F, and up to 600°F for intermittent periods. It features a specially designed plug assembly with high force contacts and alumina inserts for high temperature operation. It’s backshell is protected against mechanical damage by a Viton boot that is also splash proof. The cable (with twisted pair conductors) is noise treated and teflon jacketed.
