usb-programmable electronic vibration switch, relay output, 0.25 to 5 in/sec pk, 2 to 1k hz, top exit, 2-pin conn

Vibration Switch

Model 686C01

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-5 is 3 Wks.
Lead Time for 6-10 is 4 Wks.
  • CE
  • IP

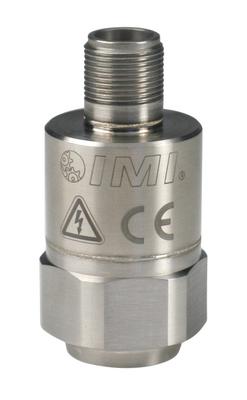

USB-programmable electronic vibration switch, relay output, 0.25 to 5 in/sec pk, 2 to 1k Hz, top exit, 2-pin conn

The 686C01 Smart Vibration Switch is a low cost versatile and fully USB Programmable electronic vibration switch that replaces unreliable mechanical vibration switches. It is also a significantly lower cost alternative for many electronic vibration switch applications.
  • Relay: (Type)SPST, Form A or B MOSFET
  • Power Required: 24 to 240 V DC/AC 50/60 Hz
  • Electrical Connector: 2-Pin MIL-C-5015

Specification Notes


[1] USB Programmable - See configuration sheet supplied with switch for exact setting.
[2] See PCB Declaration of Conformance PS096 for details.

English: SI:
Performance
Alarm Threshold (±10 %) 0.25 to 5 in/sec pk 4.5 to 90 mm/s rms [1]
Frequency Range (±3 dB) 120 to 60 kcpm 2 to 1000 Hz
Hysteresis (% < Alarm Threshold) 3; 6; or 10 % 3; 6; or 10 % [1]
Residual Vibration Level (Reference) Dependent or Independent Dependent or Independent [1]
Residual Vibration Level (% Alarm Threshold) 1 to 40 % 1 to 40 % [1]
MAVT (Sets Alarm Threshold to 2X actual vibration) Enabled or Disabled Enabled or Disabled [1]
Transverse Sensitivity <7 % <7 %
Power On Delay (±1 sec) 3 or 20 sec 3 or 20 sec [1]
Startup Delay (±1 sec or 1 min ) (Time) 1 to 60 sec or 1 to 30 min 1 to 60 sec or 1 to 30 min [1]
Startup Delay (x Alarm Threshold) x2; x4; x8; Blocked x2; x4; x8; Blocked [1]
Startup Delay (Active) Enabled or Disabled Enabled or Disabled [1]
Operational Delay (±1 sec) 1 to 60 sec 1 to 60 sec [1]
Relay(Type) SPST, Form A or B MOSFET SPST, Form A or B MOSFET
Relay(Latching) Latching / Non-Latching Latching / Non-Latching [1]
Relay(Contacts) Normally Open / Closed Normally Open / Closed [1]
Environmental
Temperature Range (Operating) -40 to 185 °F -40 to 85 °C
Temperature Range (Storage) -40 to 257 °F -40 to 125 °C
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Enclosure Rating IP68 IP68
Electrical
Power Required 24 to 240 V DC/AC 50/60 Hz 24 to 240 V DC/AC 50/60 Hz
Current Rating (Relay Closed) 500 mA 500 mA
Leak Current (Relay Open) ≤1 mA ≤1 mA
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 1.25 in 1.25 in
Size - Height 2.6 in 66 mm
Weight 5.2 oz 148 gm
Mounting Torque 3 to 5 ft-lb 4 to 7 Nm
Mounting Thread 1/4-28 Female 1/4-28 Female
Sensing Element (Internal) Piezoelectric Accelerometer Piezoelectric Accelerometer
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Top Top

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
081A41 Mounting stud, 1/4-28 x 0.563" long stainless steel screw with hex socket and brass tip 1
M081A61 Mounting stud, 1/4-28 to M6x1 x 8.6 mm long, BeCu w/shoulder 1

Optional Versions


(M) Metric Mount
Accessories:
Supplied M081A61 Mounting Stud 1

Product Downloads


NEW Programming Software for Use with 070A100 Dongle (EE225)

For use with 070A100 dongle to program 686-Series devices.

Build Out Your Measurement Chain


600A29
Model: 600A29

USB Programming Kit for All 686 Smart Sw...

$575.00 USD

(Pricing valid only in the U.S.)
