24 VDC DIN Rail Mount Power Supply

Model 682A01

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
30 Lead Time for 1-5 is 3 Wks
Lead Time for 6-10 is 4 Wks
  • CE
  • IP

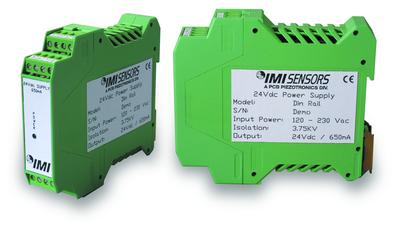

DIN rail mount 24 VDC power supply, 120-230 VAC input

24 VDC Power Supply; 120 to 230 VAC powered; DIN rail mount; 3.75 kV isolation; 1.3A maximum
  • Power Required: 85-264 VAC / 90-350 VDC
  • Output Voltage: 24 VDC
  • Output Current: 1.3 Amps

Specification Notes

[1] This device is in compliance with the EMC guideline 89/336/EEC and the low voltage guideline 73/23/EEC
[2] This device must be installed in accordance with the specifications of EN60950. It must be possible to switch off the device using a suitable disconnecting device outside the power supply. For example, primary side line protection could be used.
[3] In the case of DC applications it is necessary to connect in series an adequate fuse
[4] See appropriate Declaration of Conformance for details

English: SI:
Performance
MTBF >500000h >500000h
Efficiency >85% >85%
Control Interface
Display LED LED
Environmental
Temperature Range (Operating) -13 to +158 °F -25 to +70 °C
Temperature Range (Storage) -40 to +185 °F -40 to +85 °C
Humidity Range (Non-Condensing) <95 % <95 %
Electrical
Power Required 85-264 VAC / 90-350 VDC 85-264 VAC / 90-350 VDC
Output Voltage 24 VDC 24 VDC
Output Current 1.3 Amps 1.3 Amps
Input Frequency 45 to 65 Hz 45 to 65 Hz
Inrush Current (@ 25 deg C) <15A <15A
Current Consumption (230/120 VAC) 0.3/0.5A 0.3/0.5A
Fuse 1.25A/250V 1.25A/250V
Mains Buffering >20/110ms (120/230 VAC) >20/110ms (120/230 VAC)
Surge Voltage Protection Varistor Varistor
10-90% Load Tolerance +/- 3% +/- 3%
Turn On Delay <0.5/1s (230/120 VAC) <0.5/1s (230/120 VAC)
Turn Off Delay <150ms <150ms
Internal Surge Voltage Protection 35 VDC +/- 5% 35 VDC +/- 5%
Parallel Switching Redundant Systems Only Redundant Systems Only
Ripple Voltage <20mV pp <20mV pp
Maximum Power Loss 0.9/4.5W (No Load/Load) 0.9/4.5W (No Load/Load)
DC OK (Active) 24V / 20mA 24V / 20mA
Insulation Voltage 3kV 3kV
Physical
Size - Height 3.90 in 99 mm
Size - Width 0.89 in 22.5 mm
Size - Depth 4.24 in 107 mm
Weight 7.1 oz 0.2 kg
Conductor Cross Section AWG 14-24 0.2-2.5mm^2
Vibration (10Hz-150Hz) 2g 0.15mm
Shock (3 directions for 18 ms) 30g 30g

* All specifications are at room temperature unless otherwise specified.
