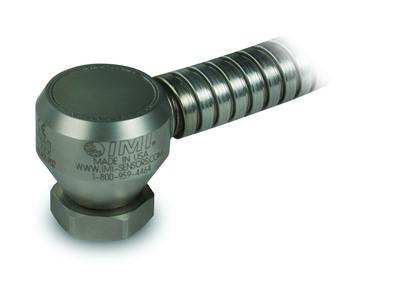

Industrial vibration sensor, 4 to 20 mA output, 0 to 1 in/sec pk, 3 to 1k Hz, side exit, 10-ft integral armor cable
- Measurement Range:
0.0 to 1 in/sec pk
(
0 to 25.4 mm/s pk)
- Output:
4-20 mA
- Frequency Range:
(±10%)180 to 60000 cpm
(
3 to 1 kHz)
- Sensing Element:
Ceramic
- Weight:
3.8 oz
(
108 gm)
Additional Configurations:
|
English: |
SI: |
|
Performance |
Measurement Range |
0.0 to 1 in/sec pk |
0 to 25.4 mm/s pk |
[
3]
|
Output |
4-20 mA |
4-20 mA |
|
Frequency Range (±10 %) |
180 to 60000 cpm |
3 to 1 kHz |
[
1]
[
2]
|
Broadband Resolution |
0.005 in/sec rms |
0.13 mm/s rms |
[
4]
|
Non-Linearity |
±1 % |
±1 % |
|
Environmental |
Temperature Range |
-40 to 185 °F |
-40 to 85 °C |
|
Electrical |
Excitation Voltage |
12 to 30 VDC |
12 to 30 VDC |
|
Settling Time (within 2% of value) |
<15 sec |
<15 sec |
|
Electrical Isolation (Case) |
>100000000 |
>100000000 |
|
Physical |
Size - Hex |
7/8 in |
22.2 mm |
|
Size - Height |
1.41 in |
35.8 mm |
|
Weight (without cable) |
3.8 oz |
108 gm |
|
Mounting Thread |
1/4-28 UNF |
1/4-28 UNF |
|
Mounting Torque (Stud) |
3 to 4 ft-lb |
4.1 to 5.4 Nm |
[
5]
[
6]
|
Mounting Torque (hex nut) |
2 to 3 ft-lb |
2.7 to 4.1 Nm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Stainless Steel |
Stainless Steel |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
Integral Armored Cable |
Integral Armored Cable |
|
Electrical Connection Position |
Side |
Side |
|
Cable Termination |
Pigtail Ends |
Pigtail Ends |
|
Electrical Connections (Red) |
4-20 mA Pos (+) |
4-20 mA Pos (+) |
|
Electrical Connections (Blue) |
4-20 mA Neg (-) |
4-20 mA Neg (-) |
|
Cable Length |
10 ft |
3.0 m |
|
Cable Type |
Polyurethane |
Polyurethane |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[
1]
1Hz = 60 cpm (cycles per minute).
[
2]
Current will fluctuate at frequencies below 5 Hz.
[
3]
Conversion Factor 1 in/sec = 0.0254 m/sec.
[
4]
Typical value.
[
5]
Stud torque must exceed sensor hex nut torque to ensure proper dismantling.
[
6]
1/8" hex Allen key required for English version, 3mm hex Allen key required for metric version.
[
7]
See PCB Declaration of Conformance PS039 or PS053 for details.
Accessories
|
|
|
Supplied |
ICS-4 |
NIST-traceable single axis amplitude response cal from 0 to +10% freq. (for 4 to 20 mA sensors) |
1 |
080A162 |
Swivel mounting stud, 3/4-16 to 1/4-28 stud with 1/8" hex socket for installation (for models 607A01 & 608A11) |
1 |
Optional Versions
(
EX )
Hazardous Area Approval- contact factory for specific approvals
Hazardous Area Approval |
EEx nL IIC T4, -40°C≤Ta≤80°C, II 3 G |
Hazardous Area Approval |
DIV I, CL I, II, III, GRPS A-G, Exia, AExia, IIC T4 |
Hazardous Area Approval |
DIV II, CL I, GRPS A-D, ExnL, AExnA, IIC T4 |
Hazardous Area Approval |
EEx ia IIC T4, -40°C≤Ta≤80°C, II 1 G |
(
M )
Metric Mount
Accessories: |
Supplied |
M080A163A |
Accessory for IMI Sensors Product |
1 |
(
RV )
Buffered Analog Signal Output - 100 mV/g (±20%)
Electrical Connections |
4-20 mA Pos (+) |
Electrical Connections |
4-20 mA Neg (-) |
Electrical Connections |
Signal Output Pos |
Electrical Connections |
Signal Output Neg |
Electrical Connector |
Integral Cable |
