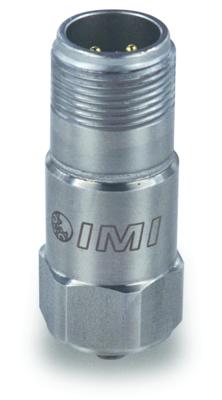

General purpose, industrial, ceramic shear ICP® accel., 500 mV/g, top exit, 2-pin conn., single point ISO 17025 accredited calibration
- Sensitivity:
(±20%)500 mV/g
(
51.0 mV/(m/s²))
- Frequency Range:
(±3dB)30 to 180000 cpm
(
0.5 to 3000 Hz)
- Sensing Element:
Ceramic
- Measurement Range:
±10 g
(
±98 m/s²)
- Weight:
1.8 oz
(
51 gm)
|
English: |
SI: |
|
Performance |
Sensitivity (±20 %) |
500 mV/g |
51.0 mV/(m/s²) |
[
1]
|
Measurement Range |
±10 g |
±98 m/s² |
|
Frequency Range (±3 dB) |
30 to 180000 cpm |
0.5 to 3000 Hz |
[
3]
|
Resonant Frequency |
1500 kcpm |
25 kHz |
[
4]
|
Broadband Resolution (1) |
300 µg |
2943 µm/sec2 |
[
4]
|
Non-Linearity |
±1 % |
±1 % |
[
2]
|
Transverse Sensitivity |
≤7 % |
≤7 % |
|
Environmental |
Overload Limit (Shock) |
5000 g pk |
49050 m/s² pk |
|
Temperature Range |
-65 to +200 °F |
-54 to +93 °C |
|
Temperature Response |
See Graph %/°F |
See Graph %/°F |
[
4]
|
Enclosure Rating |
IP68 |
IP68 |
|
Electrical |
Settling Time (within 1% of bias) |
≤5.0 sec |
≤5.0 sec |
|
Discharge Time Constant |
≥0.3 sec |
≥0.3 sec |
|
Excitation Voltage |
18 to 28 VDC |
18 to 28 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
<500 Ohm |
<500 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Spectral Noise (10 Hz) |
8 µg/√Hz |
78.5 (µm/sec2)/√Hz |
[
4]
|
Spectral Noise (100 Hz) |
3 µg/√Hz |
29.4 (µm/sec2)/√Hz |
[
4]
|
Spectral Noise (1 kHz) |
3 µg/√Hz |
29.4 (µm/sec2)/√Hz |
[
4]
|
Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
Physical |
Size - Hex |
11/16 in |
18 mm |
|
Size - Height |
1.65 in |
42.2 mm |
|
Weight |
1.8 oz |
51 gm |
|
Mounting Thread |
1/4-28 Female |
No Metric Equivalent |
[
5]
|
Mounting Torque |
2 to 5 ft-lb |
2.7 to 6.8 Nm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Stainless Steel |
Stainless Steel |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
Electrical Connection Position |
Top |
Top |
|
* All specifications are at room temperature unless otherwise specified
.

Specification Notes
[
1]
Conversion Factor 1g = 9.81 m/s².
[
2]
Zero-based, least-squares, straight line method.
[
3]
The high frequency tolerance is accurate within ±10% of the specified frequency.
[
4]
Typical.
[
5]
1/4-28 has no equivalent in S.I. units.
[
6]
See PCB Declaration of Conformance PS023 or PS060 for details.
Accessories
|
|
|
Supplied |
081A40 |
Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip |
1 |
ICS-2 |
Calibration of industrial accel., single-point, 100 Hz reference sensitivity |
1 |
Optional Versions
(
EX )
Hazardous Area Approval- contact factory for specific approvals
Hazardous Area Approval |
EEx nL IIC T4, -40°C<=Ta<=121°C, II 1 G |
Hazardous Area Approval |
Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I |
Hazardous Area Approval |
Ex ia IIC T4, AExia IIC, T4 |
Hazardous Area Approval |
Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4 |
Hazardous Area Approval |
EEx nL IIC T4, -40°C<=Ta<=121°C, II 3 G |
(
M )
Metric Mount
Accessories: |
Supplied |
M081A61 |
Mounting Stud |
1 |
(
TO )
Temperature Output
Temperature Output Range |
+36 to +200 °F |
+2 to +93 °C |
Temperature Scale Factor |
5.56 mV/°F + 32 |
+10 mV/°C |
Electrical Connector |
3-Pin MIL-C-5015 |
Electrical Connections |
Acceleration Output |
Electrical Connections |
Temperature Output |
Electrical Connections |
Ground |
Size - Height |
1.86 in |
47.2 |
Weight |
2.0 oz |
56.7 |
