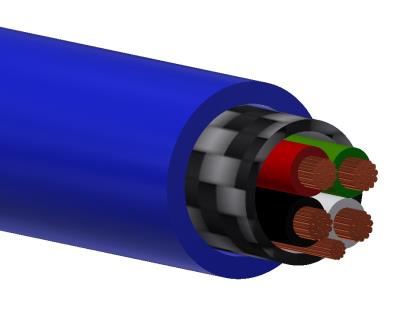

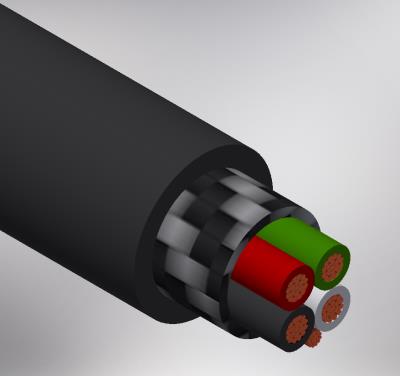

4-conductor, shielded, polyurethane jacket cable with drain wire (price per feet)

Cable

Model 518

  • IP

4-conductor, shielded, polyurethane jacket cable with drain wire (price per feet)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 4
  • Cable Jacket Material: Polyurethane
  • Temperature Range: -58 to +250 °F (-50 to +121 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 4 4
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Bundle Twisted Bundle
Environmental
Temperature Range -58 to +250 °F -50 to +121 °C
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 36 pF/ft 118 pF/m
Physical
Cable Jacket Diameter (±.010 in) 0.25 in 6.35 mm [1]
Cable Jacket Material Polyurethane Polyurethane
Cable Jacket Color Black Black
Conductor Style Stranded - 19 strands 32 AWG Stranded - 19 strands 32 AWG
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (20 AWG) 0.040 in 1.016 mm [1]
Shield Type Over Bundle Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Shield Wire Diameter Over Bundle (Each Strand 36 AWG) 0.185 in 4.699 mm [1]
Drain Wire Material Tin Plated Copper Tin Plated Copper
Drain Wire Diameter .025 in .635 mm [1]
Bend Radius (minimum) 2.5 in 63.5 mm
Weight 0.75 oz/ft 69.59 gm/m [1]
ROHS Compliant Yes Yes

* All specifications are at room temperature unless otherwise specified.
