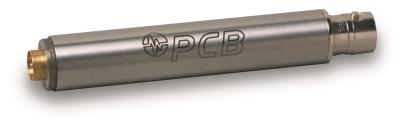

Model : 426E01 | Microphone Preamplifier

Click for lead times
Call for lead time on 1-10
$ 475.00 USD
(Pricing valid in US only!)

ICP® microphone preamplifier 1/2" to be used with prepolarized condenser microphone.

  • Nominal Microphone Diameter: 1/2"
  • Temperature Range: -40 to +176 °F (-40 to +80 °C)
  • Output Voltage: ±7 Vpk
  • Size - Length: 3.18 in (80.7 mm)

RELATED PRODUCTS



079A11

Microphone holder (for 1/2-inch microphones)



Add to Cart for Quote
Add To Cart
079A15

Microphone stand (with boom attachment & adaptor)



Add to Cart for Quote
Add To Cart
079A18

Clamp-on flexible extension arm



Add to Cart for Quote
Add To Cart
079B16

Miniature desktop tripod stand for microphones



Add to Cart for Quote
Add To Quote
English: SI:
Performance
Nominal Microphone Diameter 1/2" 1/2"
Gain -0.05 dB -0.05 dB [1] [3]
Frequency Response (±0.1 dB) (re 1 kHz) 6.3 to 125000 Hz 6.3 to 125000 Hz
Frequency Response (-3 dB) (re 1 kHz) <0.9 Hz <0.9 Hz
Phase Linearity (<1 °) 32 to 20000 Hz 32 to 20000 Hz [3]
Phase Linearity (-1 to +10 °) 3.2 to 32 Hz 3.2 to 32 Hz [3]
Electrical Noise (A-weight) <2.8 µV <2.8 µV [3]
Electrical Noise (A-weight) 1.7 µV 1.7 µV [1] [3]
Electrical Noise (Flat 20 Hz to 20 kHz) <5 µV <5 µV [3]
Electrical Noise (Flat 20 Hz to 20 kHz) 3 µV 3 µV [1] [3]
Distortion (3 V rms input at 1 kHz) <-70 dB <-70 dB [3]
Output Slew Rate 2 V/µS 2 V/µS [1]
TEDS Compliant Yes Yes [2]
Environmental
Temperature Range (Operating) -40 to +176 °F -40 to +80 °C
Temperature Response <0.05 dB <0.05 dB
Humidity Range (Non-Condensing) 0 to 95 %RH 0 to 95 %RH
Humidity Sensitivity <0.05 dB <0.05 dB
Electrical
Excitation Voltage 20 to 32 VDC 20 to 32 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Impedance (Input) 20 GOhm 20 GOhm [1]
Capacitance (Input) 0.06 pF 0.06 pF [1]
Output Bias Voltage 10 to 14 VDC 10 to 14 VDC
Impedance (Output) <50 Ohm <50 Ohm
Output Voltage (Maximum) ±7 Vpk ±7 Vpk
Physical
Housing Material Stainless Steel Stainless Steel
Size - Diameter 0.5 in 12.7 mm
Size - Length 3.18 in 80.7 mm
Weight 1.35 oz 38 gm
Electrical Connector BNC Jack BNC Jack
Mounting Thread (Microphone to Preamplifier) 0.4606 - 60 UNS 11.7 mm - 60 UNS
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Typical.
[2] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[3] Measured with an 18 pF reference microphone.
[1] Typical.
[4] See PCB Declaration of Conformance PS064 for details.


Accessories


Supplied
ERC-16 Calibration of ICP® microphone preamplifier 1
