Model: 426A05

Add to Cart for Quote

Call for lead time
Datasheet

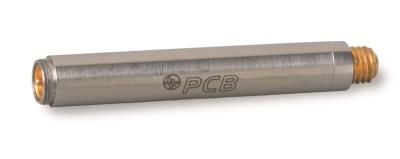

Preamplifier for 1/4" side vented prepolarized microphones.

  • Nominal Microphone Diameter: 1/4"
  • Temperature Range: -40 to 158 °F (-40 to 70 °C)
  • Output Voltage: ±8 V
  • Size - Length: 1.74 in (44.2 mm)

Add this product to my product comparison
Compare selected models ()

 English:SI:
Performance
Nominal Microphone Diameter1/4"1/4"
Gain-0.19 dB-0.19 dB[1][3]
Frequency Response (±0.1 dB) (re 1 kHz)5 to 126000 Hz5 to 126000 Hz
Frequency Response (±0.2 dB) (re 1 kHz)3.2 to 126000 Hz3.2 to 126000 Hz
Frequency Response (-3 dB) (re 1 kHz)<0.7 Hz<0.7 Hz
Phase Linearity (<1 °)63 to 20000 Hz63 to 20000 Hz
Electrical Noise (A-weight)<3.2 µV<3.2 µV[3]
Electrical Noise (A-weight)1.9 µV1.9 µV[1][3]
Electrical Noise (Flat 20 Hz to 20 kHz)<5.6 µV<5.6 µV[3]
Electrical Noise (Flat 20 Hz to 20 kHz)3.4 µV3.4 µV[1][3]
Distortion (3 V rms input at 1 kHz)<-70 dB<-70 dB
Output Slew Rate2 V/µS2 V/µS[1]
TEDS CompliantYesYes[2]
Environmental
Temperature Range (Operating)-40 to 158 °F-40 to 70 °C
Temperature Range (Storage)-40 to 185 °F-40 to 85 °C
Temperature Response<0.03 dB<0.03 dB
Humidity Range (Non-Condensing)0 to 95 %RH0 to 95 %RH
Humidity Sensitivity<0.03 dB<0.03 dB
Electrical
Excitation Voltage20 to 32 VDC20 to 32 VDC
Constant Current Excitation2 to 20 mA2 to 20 mA
Impedance (Input)20000000000 Ohm20000000000 Ohm[1]
Capacitance (Input)0.15 pF0.15 pF[1]
Output Bias Voltage10 to 14 VDC10 to 14 VDC
Impedance (Output)<50 Ohm<50 Ohm
Output Voltage (Maximum)±8 V±8 V[1]
Physical
Housing MaterialStainless SteelStainless Steel
Size - Diameter0.25 in6.4 mm
Size - Length1.74 in44.2 mm
Weight0.21 oz6 gm
Electrical Connector10-32 Coaxial Jack10-32 Coaxial Jack
Mounting Thread0.2244 - 60 UNS5.7 mm - 60 UNS

All specifications are at room temperature unless otherwise specified.


CE

Product Notes
[1] Typical.
[2] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[3] Measured with an 18 pF reference microphone.
[4] See PCB Declaration of Conformance PS076 for details.
