pcb l&t torque sensor, rotary transformer, 500 in-lb capacity fs, flanges and splines per and10262 & and20002

Rotary Transformer Torque Sensor

Model 4115A-04A

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

PCB L&T Torque Sensor, Rotary Transformer, 500 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002

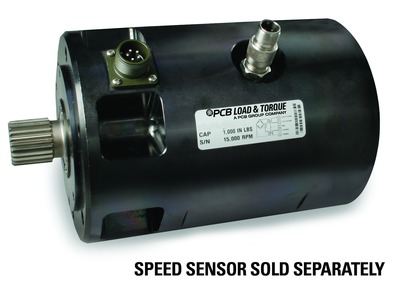

Speed sensor sold separately.


Cable: 8310-06-xxA and 8310-03-xxA

  • Measurement Range: 500 in-lb (55 Nm)
  • Sensitivity: (±15%)2.5 mV/V (2.5 mV/V)
  • Non-Linearity: <=0.05 % FS
  • Mounting: Flange w/ Splined Shaft
  • Maximum Speed: 15000 RPM

Specification Notes

[1] Nominal.
[2] FS - Full Scale.
[3] Over compensated operating temperature range.
[1] Nominal.
[2] FS - Full Scale.
[4] Recommended 10 VAC RMS.
[5] Mounting per AND10262 and AND20002.
[6] See PCB Declaration of Conformance PS062 for details.

English: SI:
Performance
Measurement Range (Full Scale Capacity) 500 in-lb 55 Nm [1]
Sensitivity (±15 %) (output at rated capacity) 2.5 mV/V 2.5 mV/V [1] [2]
Non-Linearity ≤0.05 % FS ≤0.05 % FS [2]
Hysteresis ≤0.05 % FS ≤0.05 % FS [2]
Non-Repeatability ≤0.03 % FS ≤0.03 % FS [2]
Environmental
Overload Limit 1500 in-lb 170 Nm
Temperature Range (Operating) -65 to 285 °F -54 to 141 °C
Temperature Range (Compensated) +70 to +170 °F +21 to 77 °C
Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0036 %Reading/°C [3]
Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0036 %FS/°C [2] [3]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Frequency 3.28 kHz 3.28 kHz
Excitation Voltage 2 to 10 VAC rms 2 to 10 VAC rms [4]
Bridge Current (at 5 VAC) 50 mA 50 mA
Insulation Resistance >5000000 kohm >5000000 kohm
Zero Balance ≤2 % FS ≤2 % FS [2]
Physical
Size - Shaft Length 9.10 in 231.14 mm
Size - Housing Length 8.25 in 209.55 mm
Size - Housing Height 6.00 in 152.40 mm
Weight 46 lb 20.9 kg
Mounting Flange w/ Splined Shaft Flange w/ Splined Shaft [5]
Sensing Element Strain Gage Strain Gage
Housing Material Black Oxided Steel Black Oxided Steel
Shaft Material Steel Steel
Electrical Connector MS3102A-14S-5P MS3102A-14S-5P
Torsional Stiffness 94000 in-lb/radian 10600 N-m/radian
Rotating Inertia 0.005 in-lb sec2 0.0006 N-m sec2
Maximum Speed 15000 RPM 15000 RPM

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
180-019A Mating conn., 5-socket (F) (for Series 3100, 4100 & 4200) 1
8113-105A Relay activated precision shunt calibration module 1
