icp® sensor simulator, for signal conditioner testing

ICP CIRCUIT SIMULATOR

Model 401B04

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-10 is 3 Wks.
Lead Time for 11-20 is 4 Wks.
Lead Time for 21-30 is 6 Wks.
Lead Time for 21-30 is 6 Wks.
  • CE
  • IP

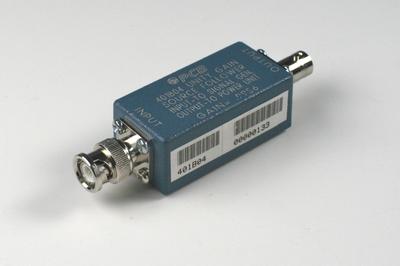

ICP® sensor simulator, for signal conditioner testing


  • Temperature Range: +30 to +150 °F (-1.1 to +65.5 °C)
  • Housing Material: Aluminum

Specification Notes

[1] Above stated frequency, the amplifier becomes slew rate limited.
[2] Typical, tested with 1000 pF capacitance at input.
[3] Excitation current supplied minus 1 mA nominal current consumption.
[4] Voltage < 20 VDC reduces input range to ±3V.
[5] See PCB Declaration of Conformance PS024 for details. A low impendance connection from case to earth ground is required to maintain CE compliance.

English: SI:
Performance
Gain (+0 to -2 %) 1 1
Output Range ±5 V ±5 V
Low Frequency Response 0 Hz 0 Hz
High Frequency Response (2.0 mA) 110 kHz 110 kHz [1]
High Frequency Response (4 mA) 220 kHz 220 kHz [1]
High Frequency Response (20 mA) 1000 kHz 1000 kHz [1]
Non-Linearity 2 % FS 2 % FS
Environmental
Temperature Range (Operating) +30 to +150 °F -1.1 to +65.5 °C
Electrical
Excitation Voltage +18 to 30 VDC +18 to 30 VDC [4]
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage +7 to 14 VDC +7 to 14 VDC
Output Current 1 to 19 mA 1 to 19 mA [3]
Broadband Electrical Noise (10 kHz) 12 µV rms 12 µV rms [2]
Spectral Noise (1 Hz) 4 µV/√Hz 4 µV/√Hz [2]
Spectral Noise (10 Hz) 1 µV/√Hz 1 µV/√Hz [2]
Spectral Noise (100 Hz) 0.3 µV/√Hz 0.3 µV/√Hz [2]
Spectral Noise (1 kHz) 0.1 µV/√Hz 0.1 µV/√Hz [2]
Spectral Noise (10 kHz) 0.05 µV/√Hz 0.05 µV/√Hz [2]
Insulation Resistance 1000000000 1000000000
Physical
Housing Material Aluminum Aluminum
Electrical Connector (Input) BNC Plug BNC Plug
Electrical Connector (Output) BNC Jack BNC Jack
Size - Length 2.2 in 55.9 mm
Size - Width 1.1 27.9
Size - Height 0.9 22.9
Weight 2.50 oz 70.9 gm

* All specifications are at room temperature unless otherwise specified.
