Model : 378C01 | ICP Microphone System

Click for lead times
Lead Time for 11-20 is 7 Wks
Lead Time for 21-30 is 8 Wks
1/4 free-field, prepolarized 377c01 microphone and 426b03 preamplifier. teds programmed
$ 1,465.00 USD
(Pricing valid in US only!)

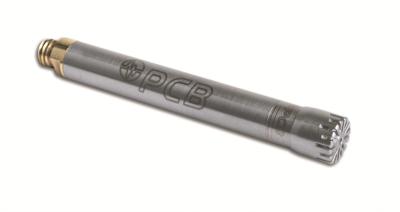

1/4" free-field, prepolarized 377C01 microphone and 426B03 preamplifier. TEDS programmed

This model includes a 1/4" microphone cartridge, a mated preamplifier with TEDS, and system calibration. Click the following for individual component information.
377C01
426B03

  • Nominal Microphone Diameter: 1/4"
  • Frequency Response Characteristic: Free-Field
  • Frequency Range: (+2 / -3dB)4 to 100000 Hz
  • Dynamic Range: 165 dB re 20 µPa

RELATED PRODUCTS



079A07
079A07

Windscreen (for 1/4-inch microphones)



Add to Cart for Quote
Add to Cart
079A15
079A15

Microphone stand (with boom attachment & adaptor)



Add to Cart for Quote
Add to Cart
079A18
079A18

Clamp-on flexible extension arm



Add to Cart for Quote
Add to Cart
079B10
079B10

Microphone holder (for 1/4-inch microphones)



Add to Cart for Quote
Add to Cart
079B32
079B32

1/4 inch array holder (for 1/2 inch diameter rod)



Add to Cart for Quote
Add to Cart
079C20
079C20

Nose cone (for 1/4 inch microphone)



Add to Cart for Quote
Add to Cart
079A53
079A53

Miniature Windscreen for 0.25 inch microphones .75" dia with 1.1" length



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Nominal Microphone Diameter 1/4" 1/4"
Frequency Response Characteristic (at 0° incidence) Free-Field Free-Field
Sensitivity (±3 dB) -54 dB re 1 V/Pa -54 dB re 1 V/Pa [ 3]
Sensitivity 2.0 mV/Pa 2.0 mV/Pa [ 3]
Frequency Range (+2 / -3 dB) 4 to 100000 Hz 4 to 100000 Hz
Frequency Range (±2 dB) 5 to 80000 Hz 5 to 80000 Hz
Frequency Range (±1 dB) 7 to 12500 Hz 7 to 12500 Hz
Lower Limiting Frequency (3) 0.75 to 4.0 Hz 0.75 to 4.0 Hz
Inherent Noise 42 dB(A) re 20 µPa 42 dB(A) re 20 µPa [ 1] [ 4]
Dynamic Range (3% Distortion Limit) 165 dB re 20 µPa 165 dB re 20 µPa [ 1]
TEDS Compliant Yes Yes [ 2]
Environmental
Temperature Range (Operating) -40 to +176 °F -40 to +80 °C [ 5]
Temperature Coefficient of Sensitivity (+14 to +158°F (-10 to +70°C)) 0.003 dB/°F 0.006 dB/°C [ 1] [ 3]
Static Pressure Coefficient -0.009 dB/kPa -0.009 dB/kPa [ 1] [ 3]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing) ±0.0014 dB/%RH ±0.0014 dB/%RH [ 3]
Influence of Axial Vibration (0.1g (1 m/s²)) 60 dB re 20 µPa 60 dB re 20 µPa [ 1]
Electrical
Polarization Voltage 0 V 0 V [ 6]
Excitation Voltage 20 to 32 VDC 20 to 32 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Bias Voltage 10 to 14 VDC 10 to 14 VDC
Maximum Output Voltage ±8 Vpk ±8 Vpk
Output Impedance <50 Ohm <50 Ohm
Physical
Housing Material Stainless Alloy Stainless Alloy
Venting Rear Rear [ 7]
Electrical Connector 10-32 Jack 10-32 Jack
Mounting Thread (Grid) 0.25 - 60 UNS 0.25 - 60 UNS
Size - Diameter (with grid) 0.28 in 7.1 mm
Size - Diameter (without grid) 0.25 in 6.35 mm
Size - Height (with grid) 2.07 in 52.6 mm
Size - Height (without grid) 2.02 in 51.3 mm
Weight 0.27 oz 7.8 gm [ 1]
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Typical.
[ 2] TEDS Capable Digital Communication, compliant with IEEE 1451.4
[ 3] re 250 Hz
[ 4] A-Weighted inherent noise is specified from 20 Hz - 20 kHz.
[ 1] Typical.
[ 3] re 250 Hz
[ 5] Limited to 70°C if ICP current >10mA
[ 6] Prepolarized
[ 1] Typical.
[ 7] Venting through Preamp.
[ 8] See PCB Declaration of Conformance PS167 and PS076 for details.
