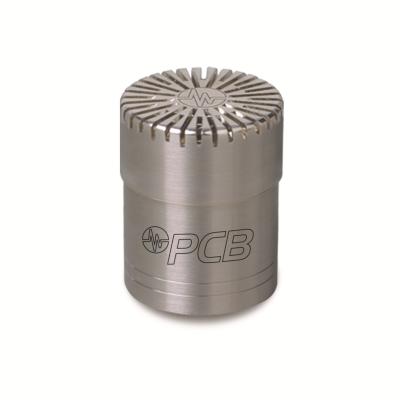

Model: 377B02

$695.00 USD
(Pricing valid in US only)


1/2" free-field, prepolarized condenser microphone, typical sensitivity= 50 mV/Pa (+/-1.5 dB), 3.15 Hz to 20 kHz (+/-2 dB).

  • Nominal Microphone Diameter: 1/2"
  • Frequency Response Characteristic: Free-Field
  • Frequency Range: (±2dB) 3.15 to 20000 Hz
  • Dynamic Range: 147 dB re 20 µPa

Add this product to my product comparison
Compare selected models ()

Nominal Microphone Diameter1/2"1/2"
Frequency Response Characteristic (at 0° incidence)Free-FieldFree-Field
Open Circuit Sensitivity (±1.5 dB)-26 dB re 1 V/Pa-26 dB re 1 V/Pa[2]
Open Circuit Sensitivity50 mV/Pa50 mV/Pa[2]
Frequency Range (±2 dB)3.15 to 20000 Hz3.15 to 20000 Hz
Frequency Range (±1 dB)5 to 10000 Hz5 to 10000 Hz
Lower Limiting Frequency (-3 dB)1.0 to 2.4 Hz1.0 to 2.4 Hz
Resonant Frequency (90° Phase Shift)10400 Hz10400 Hz[1]
Inherent Noise15 dB(A) re 20 µPa15 dB(A) re 20 µPa[1]
Dynamic Range (3% Distortion Limit)147 dB re 20 µPa147 dB re 20 µPa[1]
Standards Designation (IEC 61094-4)WS2FWS2F
Temperature Range (Operating)-40 to +302 °F-40 to +150 °C
Temperature Coefficient of Sensitivity (+14 to +122°F (-10 to +50°C))0.005 dB/°F0.009 dB/°C[1][2]
Static Pressure Coefficient-0.013 dB/kPa-0.013 dB/kPa[1][2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing)±0.001 dB/%RH±0.001 dB/%RH[2]
Influence of Axial Vibration (0.1g (1 m/s²))63 dB re 20 µPa63 dB re 20 µPa[1]
Capacitance (Polarized)12 pF12 pF[1]
Polarization Voltage0 V0 V[3]
Housing MaterialStainless AlloyStainless Alloy
Mounting Thread0.4606 - 60 UNS11.7 mm - 60 UNS
Mounting Thread0.5 - 60 UNS12.7 mm - 60 UNS
Size - Diameter (with grid)0.52 in13.2 mm
Size - Diameter (without grid)0.5 in12.7 mm
Size - Height (with grid)0.64 in16.2 mm
Size - Height (without grid)0.6 in15.3 mm
Weight0.28 oz7.8 gm[1]

All specifications are at room temperature unless otherwise specified.


Product Notes
[1] Typical.
[2] re 250 Hz
[3] Prepolarized
[4] See PCB Declaration of Conformance PS167 for details.
ACS-20Calibration of Precision Condensor Microphones(1)
