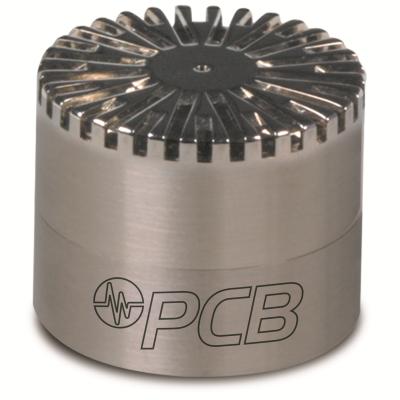

Model : 377A15 | Precision Condenser Microphone

Call for lead time
1 in prepolarized pressure microphone
$ 1,100.00 USD
(Pricing valid in US only!)

1 in prepolarized pressure microphone

  • Nominal Microphone Diameter: 1"
  • Frequency Response Characteristic: Pressure
  • Frequency Range: (+/-2dB)5 to 8000 Hz
  • Inherent Noise: 10 dB(A) re 20 µPa
  • Dynamic Range: >150 dB re 20 µPa

RELATED PRODUCTS



079A11
079A11

Microphone holder (for 1/2-inch microphones)



Add to Cart for Quote
Add to Cart
079A15
079A15

Microphone stand (with boom attachment & adaptor)



Add to Cart for Quote
Add to Cart
079A18
079A18

Clamp-on flexible extension arm



Add to Cart for Quote
Add to Cart
079B16
079B16

Miniature desktop tripod stand for microphones



Add to Cart for Quote
Add to Quote
079B25
079B25

1 in. microphone to 1/2 in. preamp adaptor



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Nominal Microphone Diameter 1" 1"
Frequency Response Characteristic Pressure Pressure
Open Circuit Sensitivity (+/-2 dB) -26 dB re 1 V/Pa -26 dB re 1 V/Pa [ 2]
Open Circuit Sensitivity 50 mV/Pa 50 mV/Pa [ 2]
Frequency Range (+/-2 dB) 5 to 8000 Hz 5 to 8000 Hz
Lower Limiting Frequency 1 to 3 Hz 1 to 3 Hz
Resonant Frequency (90° Phase Shift) 8600 Hz 8600 Hz [ 1]
Inherent Noise 10 dB(A) re 20 µPa 10 dB(A) re 20 µPa [ 1]
Inherent Noise <11.5 dB(A) re 20 µPa <11.5 dB(A) re 20 µPa
Dynamic Range (3% Distortion Limit) >150 dB re 20 µPa >150 dB re 20 µPa
Standards Designation (IEC 61094-4) WS1P WS1P
Environmental
Temperature Range (Operating) -40 to +248 °F -40 to +120 °C
Temperature Coefficient of Sensitivity (+14 to +122°F (-10 to +50°C)) +0.006 dB/°F +0.01 dB/°C [ 1] [ 2]
Static Pressure Coefficient -0.012 dB/kPa -0.012 dB/kPa [ 1] [ 2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing) +/-0.001 dB/%RH +/-0.001 dB/%RH [ 2]
Influence of Axial Vibration (0.1g (1 m/s²)) 66.5 dB re 20 µPa 66.5 dB re 20 µPa [ 1]
Electrical
Capacitance 45 pF 45 pF [ 1]
Polarization Voltage 0 V 0 V [ 3]
Physical
Housing Material Stainless Alloy Stainless Alloy
Venting Rear Rear
Mounting Thread (Preamplifier) 0.9098-60 UNS 23.11mm-60 UNS
Mounting Thread (Grid) 0.9098-60 UNS 23.11mm-60 UNS
Size - Diameter (with grid) 0.936 in 23.77 mm
Size - Diameter (without grid) 0.936 in 23.77 mm
Size - Height (with grid) 0.748 in 19 mm
Size - Height (without grid) 0.668 in 17 mm
Weight 1.08 oz 30.6 gm [ 1]
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Typical.
[ 2] re 250 Hz
[ 1] Typical.
[ 2] re 250 Hz
[ 1] Typical.
[ 3] Prepolarized
[ 1] Typical.
[ 4] See PCB Declaration of Conformance PS167 for details.


Accessories


Supplied
ACS-20 Calibration of precision condenser microphones 1
