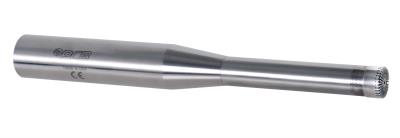

PHANTOM POWER MICROPHONE SYSTEM

Model 376A32

  • CE
  • IP

Patented phantom powered 48V, 24V or 12V, 377B02 microphone and 426A14 preamplifier system

  • Nominal Microphone Diameter: 1/2"
  • Frequency Response Characteristic: Free-Field
  • Frequency Range: (±2dB)3.75 to 20000 Hz (3.75 to 20000 Hz)
  • Inherent Noise: 15.5 dB(A) re 20 µPa
  • Dynamic Range: 137 dB re 20 µPa

Specification Notes


[1] Typical.
[2] re 250 Hz
[1] Typical.
[2] re 250 Hz
[1] Typical.
[3] Prepolarized
[1] Typical.
[4] See PCB Declaration of Conformance PS147 and PS167 for details.

English: SI:
Performance
Nominal Microphone Diameter 1/2" 1/2"
Frequency Response Characteristic (at 0° incidence) Free-Field Free-Field
Sensitivity (±1.5 dB) -26 dB re 1 V/Pa -26 dB re 1 V/Pa [2]
Sensitivity 50 mV/Pa 50 mV/Pa [2]
Frequency Range (±2 dB) 3.75 to 20000 Hz 3.75 to 20000 Hz
Frequency Range (±1 dB) 7 to 10000 Hz 7 to 10000 Hz
Lower Limiting Frequency (3) 1.0 to 3.0 Hz 1.0 to 3.0 Hz
Inherent Noise 15.5 dB(A) re 20 µPa 15.5 dB(A) re 20 µPa [1]
Dynamic Range (3% Distortion Limit) 137 dB re 20 µPa 137 dB re 20 µPa [1]
Environmental
Temperature Range (Operating) -40 to +149 °F -40 to +65 °C
Temperature Coefficient of Sensitivity (+14 to +149°F (-10 to 65°C)) 0.005 dB/°F 0.009 dB/°C [1] [2]
Static Pressure Coefficient -0.013 dB/kPa -0.013 dB/kPa [1] [2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing) ±0.001 dB/%RH ±0.001 dB/%RH [2]
Influence of Axial Vibration (0.1g (1 m/s²)) 63 dB re 20 µPa 63 dB re 20 µPa [1]
Electrical
Polarization Voltage 0 V 0 V [3]
Current Draw 6.5 mA 6.5 mA [1]
Maximum Output Voltage ±10 Vpk ±10 Vpk
Output Impedance <50 Ohm <50 Ohm
Physical
Housing Material Stainless Alloy Stainless Alloy
Venting Rear Rear
Electrical Connector 3-Pin XLR 3-Pin XLR
Mounting Thread (Grid) 0.5 - 60 UNS 0.5 - 60 UNS
Size - Diameter (with grid) 0.79 in 20.1 mm
Size - Height (with grid) 6.99 in 177.6 mm
Weight 6.50 oz 184.2 gm [1]

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
079A49 Phantom powered microphone holder 20mm dia with 5/8-27 1
64443-01 1
64444-01 1
ACS-42 Calibration of a Series 377 (Type 1) microphone & preamp, as mated pair 1
