Model : 3741F12100G | DC Response Accelerometer

Click for lead times
Lead Time for 1-5 is 4 Wks
Lead Time for 6-10 is 5 Wks
$ 690.00 USD
(Pricing valid in US only!)
Datasheet

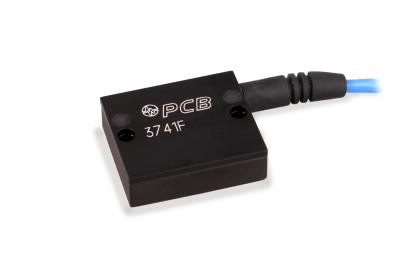

Differential MEMS DC accelerometer, 27 mV/g, 100 g, 10 ft integral cable

  • Sensitivity: (±3%)27 mV/g (2.75 mV/(m/s²))
  • Measurement Range: ±100 g pk (±980.7 m/s² pk)
  • Broadband Resolution: 3.5 mg rms (.034 m/s² rms)
  • Temperature Range: -65 to 250 °F (-54.0 to 121 °C)
  • Frequency Range: (±5%)0 to 1500 Hz
  • Electrical Connector: Integral Cable
Additional Configurations:

RELATED PRODUCTS

482C27

4-channel, line-powered, bridge/differential/ICP® sensor signal cond., incremental gain, Autozero, RS-232, Ethernet



Add to Cart for Quote
Add To Quote
483C28

8-channel, line-powered, bridge/differential/ICP® sensor signal cond., incremental gain, Autozero, Ethernet



Add to Cart for Quote
Add To Quote
080A208

Triaxial mounting block, aluminum, for use with 3741 Series



Add to Cart for Quote
Add To Cart
081A103

4-40 threaded black-oxide alloy steel socket head cap screw with stainless steel washer (for series 3741, 3741M01)



Add to Cart for Quote
Add To Cart
M081A103

M3x0.5 threaded black-oxide alloy steel socket head cap screw with stainless steel washer (for series 3741)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±3 %) 27 mV/g 2.75 mV/(m/s²) [3]
Measurement Range ±100 g pk ±980.7 m/s² pk
Frequency Range (±5 %) 0 to 1500 Hz 0 to 1500 Hz
Frequency Range (±10 ) 0 to 2500 Hz 0 to 2500 Hz
Resonant Frequency 8500 Hz 8500 Hz [2]
Phase Response (100 Hz) <10 ° <10 °
Broadband Resolution (0.5) 3.5 mg rms .034 m/s² rms [2]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit (Shock) ±5000 g pk ±49050 m/s² pk
Temperature Range (Operating) -65 to 250 °F -54.0 to 121 °C
Temperature Range (Storage) -65 to 250 °F -54.0 to 121 °C
Temperature Coefficient of Sensitivity ±2.5 % ±2.5 %
Zero g Offset Temperature Coefficient ±1.5 % FSO ±1.5 % FSO [4] [5]
Base Strain Sensitivity 0.002 g/µε .02 (m/s²)/µε [2]
Magnetic Sensitivity 40 µg/gauss 3.9 (m/s²)/Tesla [2]
Electrical
Excitation Voltage 5 to 32 VDC 5 to 32 VDC
Current Consumption ≤5 mA ≤5 mA
Output Impedance ≤120 Ohm ≤120 Ohm
Offset Voltage ±20 mVDC ±20 mVDC [6]
Common Mode Voltage (±0.1 VDC) +1.65 VDC +1.65 VDC
Spectral Noise (1) 500 µg/√Hz 4905 (µm/sec2)/√Hz [2]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm [7]
Physical
Housing Material Anodized Aluminum Anodized Aluminum
Sealing Epoxy Epoxy
Size - Height 0.30 in 7.62 mm
Size - Length 1.00 in 25.4 mm
Size - Width .85 in 21.6 mm
Weight (without cable) 0.35 oz 9.92 gm [2]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Termination Pigtail Ends Pigtail Ends
Cable Type 010 4-cond Shielded 010 4-cond Shielded
Cable Length 10 ft 3 m
Mounting Through Holes (2) Through Holes (2)
* All specifications are at room temperature unless otherwise specified
.


Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Measured at 100 Hz, 10 grms.
[2] Typical.
[4] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[5] FSO = Full Scale Output over the Measurement Range (8VDC).
[2] Typical.
[6] Offset tolerance is based on manufacturers supplied cable length.
[7] Case and shield to mounting surface or cable leads.
[2] Typical.
[8] See PCB Declaration of Conformance PS027 for details.


Accessories
Optional
080A208 Triaxial mounting block, aluminum, for use with 3741 Series 1
Supplied
ACS-172 1
081A103 4-40 threaded black-oxide alloy steel socket head cap screw with stainless steel washer (for series 3741, 3741M01) 2
M081A103 M3x0.5 threaded black-oxide alloy steel socket head cap screw with stainless steel washer (for series 3741) 2
