charge output accel., 50 pc/g, 500 g, to 2.5 khz, 2-pin connector, 3-hole mount, to +900 f

Charge Output Accelerometer

Model 357C72

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
7 Lead Time for 1-5 is 5 Wks.
Lead Time for 6-10 is 6 Wks.
  • CE
  • IP

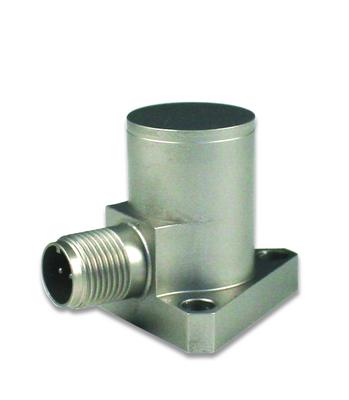

Charge output accel., 50 pC/g, 500 g, to 2.5 kHz, 2-pin connector, 3-hole mount, to +900 F

Sensor can be paired with any one of the charge amplifiers in the Suggested Accessories section.  If paired with a Model Number 422M182, cable Model Numbers 013GNXXXGP and 045M19 should be used.  If paired with a Model Number EX682A40, cable Model Numbers 013GNXXXGP and 045M21 should be used. Cable Model Number 013GNXXXGP is radiation-hardened for nuclear applications.


Replaces Legacy Model Endevco 6233C-50

  • Sensitivity: (±5%)50 pC/g (5.1 pC/(m/s²))
  • Measurement Range: ±500 g pk (±4905 m/s² pk)
  • Frequency Range: (±5%)2.5 kHz (2.5 kHz)
  • Weight: 3.15 oz (90 gm)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically ≤ 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Typical.
[5] See PCB Declaration of Conformance PS081 for details.

English: SI:
Performance
Sensitivity (±5 %) 50 pC/g 5.1 pC/(m/s²)
Measurement Range ±500 g pk ±4905 m/s² pk
Frequency Range (±5 %) 2.5 kHz 2.5 kHz [3]
Resonant Frequency ≥13 kHz ≥13 kHz
Non-Linearity ≤1 % ≤1 % [1]
Transverse Sensitivity ≤5 % ≤5 % [2]
Environmental
Overload Limit (Shock) ±2000 g pk ±19620 m/s² pk
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Range -65 to +900 °F -54 to +482 °C
Temperature Response See Graph %/°F See Graph %/°F [4]
Base Strain Sensitivity 0.033 g/µε 0.32 (m/s²)/µε [4]
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1 E8 rad 1 E8 rad
Electrical
Capacitance (Pin to Pin) 990 pF 990 pF [4]
Capacitance (Pin to Case) 26 pF 26 pF [4]
Capacitance (Unbalance Between Pins) ≤2 pF ≤2 pF
Insulation Resistance (Pin to Case 70°F) >100000000 Ohm >100000000 Ohm [4]
Insulation Resistance (Pin to Pin 70°F) >1000000000 Ohm >1000000000 Ohm
Insulation Resistance (Pin to Pin 900°F) >100 kohm >100 kohm
Physical
Sensing Element Ceramic Ceramic
Sealing Hermetic Hermetic
Size - Height 1.40 in 35.6 mm
Size - Diameter 0.75 in 19 mm
Weight 3.15 oz 90 gm [4]
Electrical Connector 7/16-27 2-Pin 7/16-27 2-Pin
Electrical Connection Position Side Side
Mounting Through Holes (3) Through Holes (3)

* All specifications are at room temperature unless otherwise specified.
