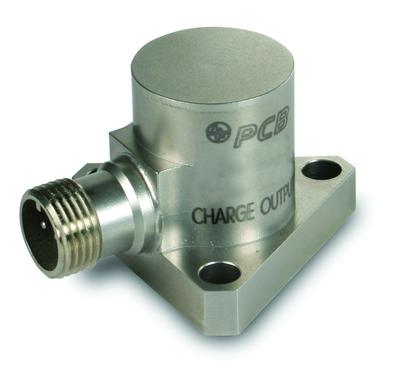

Model : 357B82 | Charge Output Accelerometer

Click for lead times
high temperature to +550 f, case isolated, differential accel., 50 pc/g
Add to Cart for Quote

High temperature to +550 F, case isolated, differential accel., 50 pC/g

  • Sensitivity: (±5%)50 pC/g ( 5.1 pC/(m/s²))
  • Measurement Range: 1000 g pk ( 9810 m/s² pk)
  • Frequency Range: (±5%)6000 Hz
  • Weight: 1.75 oz ( 50 gm)
English: SI:
Performance
Sensitivity (±5 %) 50 pC/g 5.1 pC/(m/s²)
Measurement Range 1000 g pk 9810 m/s² pk
Frequency Range (±5 %) 6000 Hz 6000 Hz
Resonant Frequency ≥20 kHz ≥20 kHz
Non-Linearity (1000 g, 9800 m/s²) ≤1 % ≤1 %
Transverse Sensitivity ≤5 % ≤5 % [ 1]
Environmental
Overload Limit (Shock) ±2000 g pk ±19620 m/s² pk
Temperature Range (Maximum) 550 °F 288 °C
Temperature Range (Operating) -65 to 500 °F -54 to 260 °C
Temperature Response (Operating) See Graph %/°F See Graph %/°F [ 2]
Base Strain Sensitivity .001 g/µε .01 (m/s²)/µε [ 2]
Radiation Exposure Limit (Integrated Neutron Flux) 1E10 N/cm² 1E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux) 1E8 rad 1E8 rad
Electrical
Capacitance (Pin to Pin) 2300 pF 2300 pF [ 2]
Capacitance (Pin to Case) 30 pF 30 pF [ 2]
Capacitance (Unbalance Between Pins) ≤2 pF ≤2 pF
Insulation Resistance (Pin to Case at 70°F [21°C]) ≥1 GOhm ≥1 GOhm
Insulation Resistance (Pin to Pin at 500°F [260°C]) ≥10 MOhm ≥10 MOhm
Insulation Resistance (Pin to Pin at 70°F [21°C]) ≥1 GOhm ≥1 GOhm
Insulation Resistance (Pin to Case at 500°F [260°C]) ≥50 MOhm ≥50 MOhm
Output Polarity Differential Differential
Physical
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Size - Height 1.00 in 25.4 mm
Size - Diameter .75 in 19 mm
Weight (Maximum) 1.75 oz 50 gm [ 2]
Electrical Connector 7/16-27 2-Pin 7/16-27 2-Pin
Electrical Connection Position Side Side
Mounting Through Holes (3) Through Holes (3)
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Transverse sensitivity is typically ≤ 3%.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS160 for details.


Accessories


Supplied
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
081A99 Socket head cap screw, 8-32 x 0.5" long, 18-8 stainless steel 3
